Horizontal Boring Machine

Get a Price/Quote

MOQ : 1 Piece

Horizontal Boring Machine Specification

Machine Type
Horizontal Boring Machine

Dimension (L*W*H)
4200 mm x 2300 mm x 1800 mm

Feature
Heavy-duty construction, high accuracy, versatile operations, easy controls

Used For
Precise boring, drilling, milling and facing operations on large or heavy workpieces

Weight
Approx. 4,500 kg

Voltage
415 V, 3 Phase AC

Capacity
Spindle diameter 110 mm, table size 1250 x 1250 mm, maximum boring diameter up to 250 mm

Output
High precision machining of large parts

Color
Industrial Blue / Grey

Manufacturing Year
2023

Condition
New

Power
Main Motor Power 7.5 kW

Tool Clamping Type
Manual

Control System
Conventional mechanical operated

Noise Level
Below 75 dB

Table Load Capacity
3,000 kg

Number of Feed Rates
12

Spindle Speed Range
30 - 1100 RPM

Table Traverse (X/Y Axis)
2000 mm / 1500 mm

Chuck Type
Rotary table with T-slots

Installation Space Required
4500 mm x 2500 mm

Quill Travel
900 mm

Coolant System
Provided

Horizontal Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1 Week

About Horizontal Boring Machine

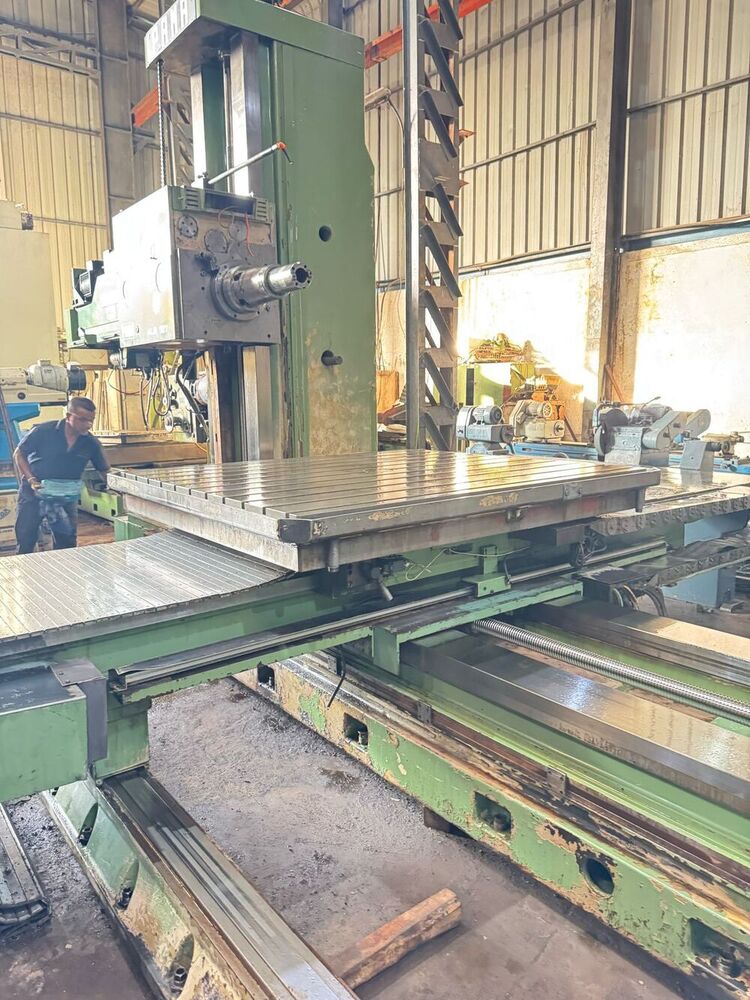

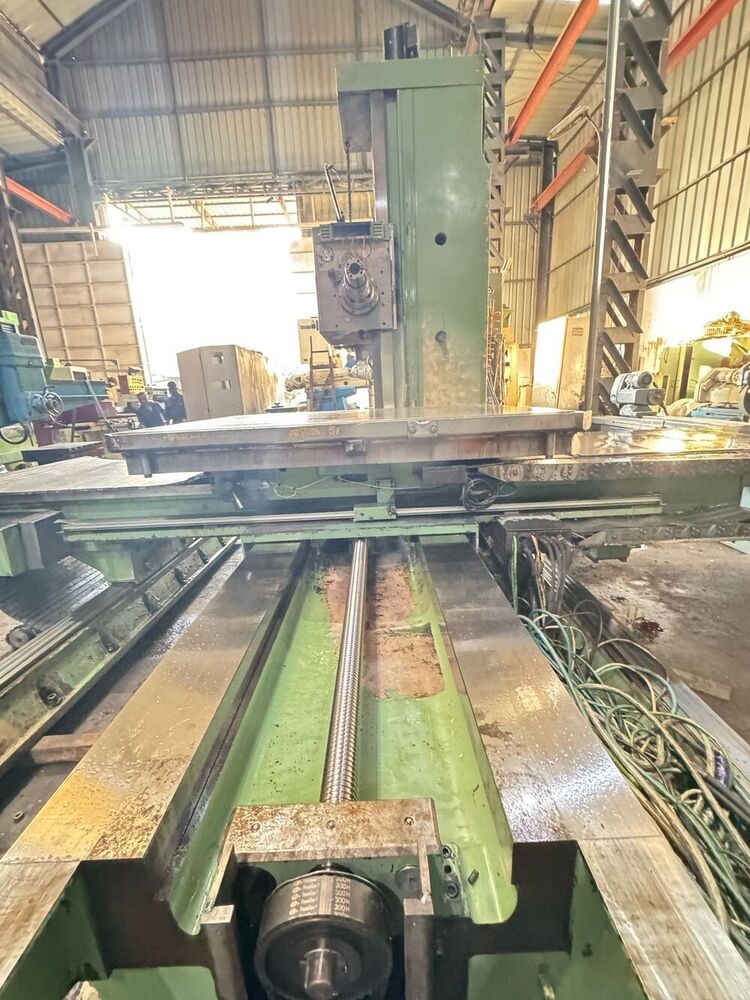

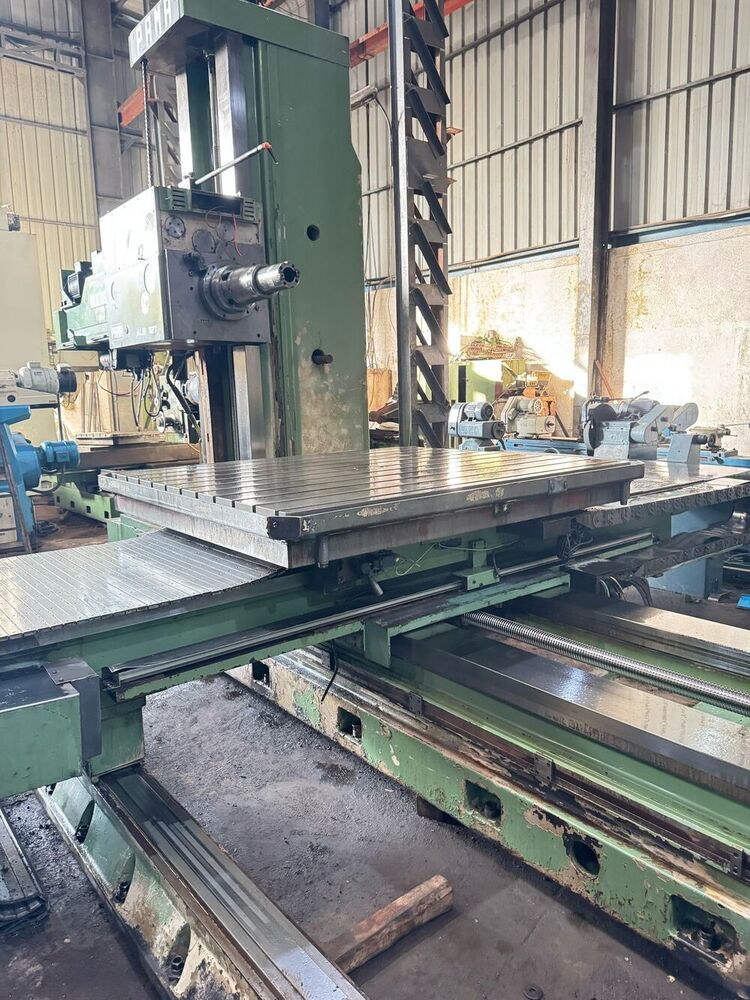

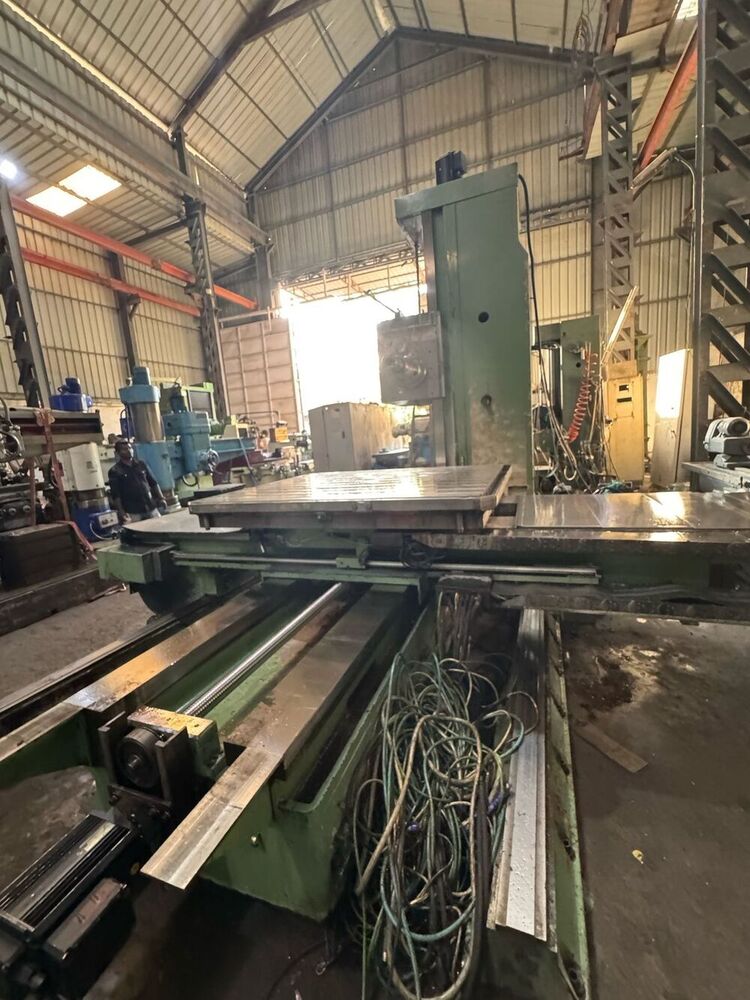

Horizontal Boring Machine

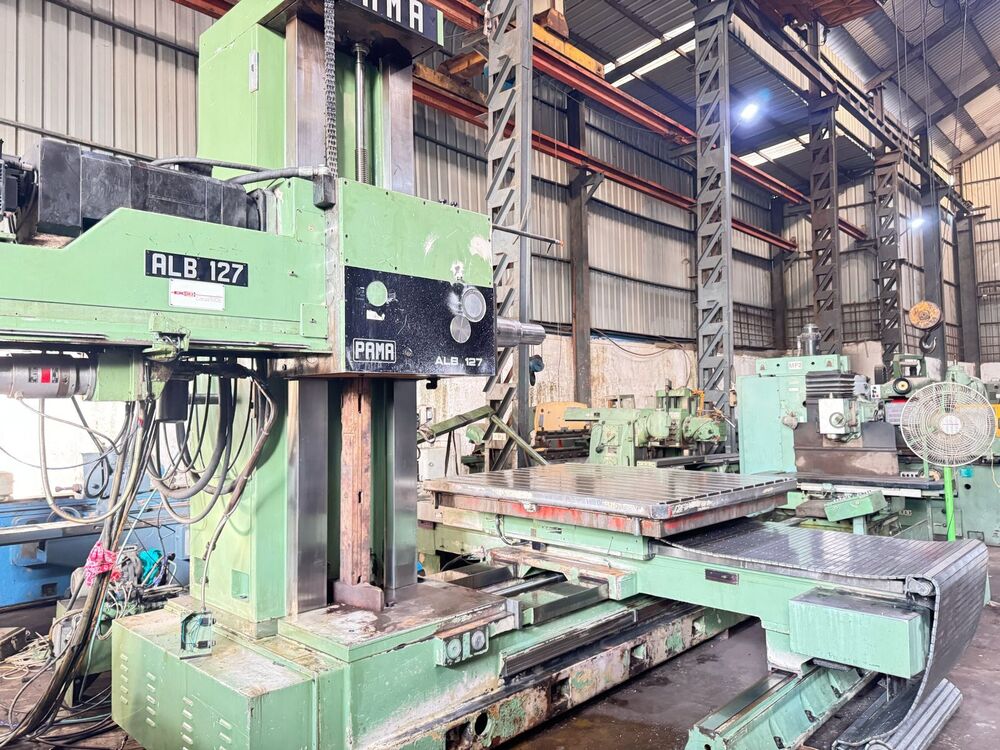

Make : PAMA

Model : AL 127

Spindle diameter: 127 mm

Spindle taper: ISO 50

Spindle speed: 8 1250 rpm

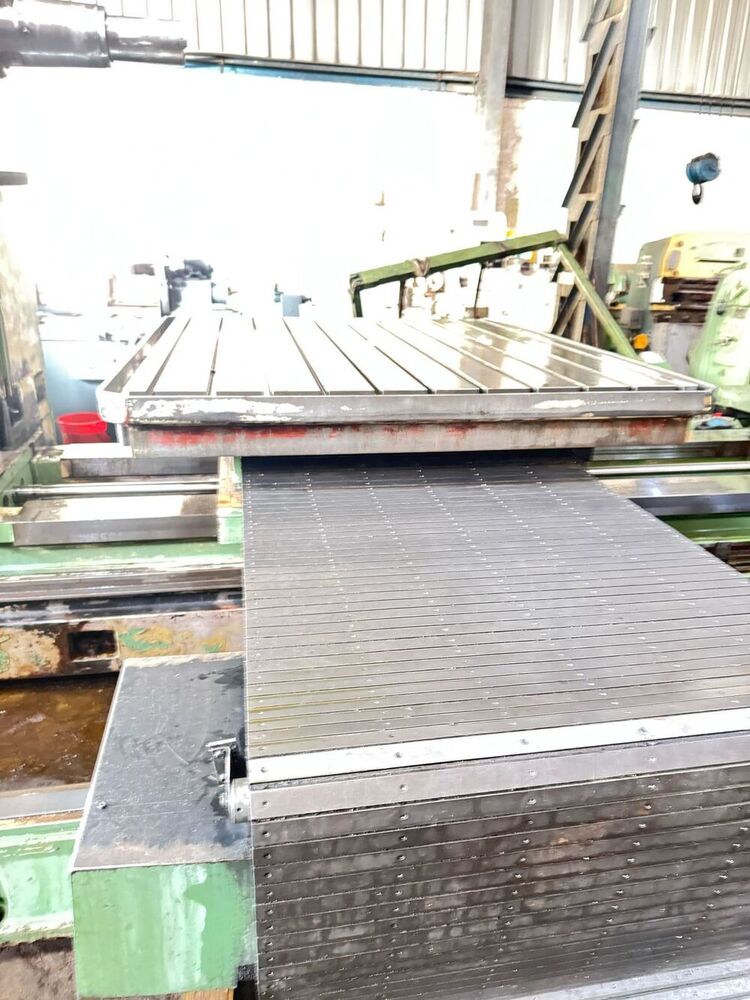

Table size : 1800mm x 1500mm

Travels:

X (cross): 2700mmm

Z (longitudinal): 1900 mm

Y (vertical): 2000 mm

Work piece weight: max 10 tons

All ball screws Harden Bed.

Complete with motor pendant and

Versatile Precision Machining

Designed for a wide array of operations-including boring, drilling, milling, and facing-this horizontal boring machine ensures high precision and accuracy. Its heavy-duty structure enables seamless handling of large and weighty workpieces, making it ideal for manufacturing and fabrication environments where versatility is crucial.

Robust Table and Spindle Performance

With a spacious rotary table measuring 1250 x 1250 mm and a 3,000 kg load capacity, the machine supports demanding machining tasks. Its 110 mm spindle diameter, 12 feed rates, and spindle speed range of 30-1100 RPM provide flexibility and control, allowing users to fine-tune operations for different material types and specifications.

Efficient and User-Friendly Controls

The conventional mechanical operating system offers straightforward, reliable control over all machine functions. Manual tool clamping, along with an integrated coolant system and easy-to-navigate controls, helps operators achieve consistent results while maintaining maximum safety and efficiency across all projects.

FAQ's of Horizontal Boring Machine:

Q: How does the horizontal boring machine ensure high-precision operations for large workpieces?

A: The machine features a rigid, heavy-duty construction and high-precision rotary table with T-slots, supporting a table load capacity of up to 3,000 kg. The 110 mm spindle and 900 mm quill travel further enhance accuracy, making it suitable for precision boring, drilling, milling, and facing operations on sizable workpieces.

Q: What is the process for operating the spindle and feed rates on this machine?

A: Spindle speeds can be adjusted within a range of 30 to 1100 RPM, and users can select from 12 different feed rates, tailored to various materials and cutting requirements. The machine is operated using conventional mechanical controls, offering a simple, intuitive process for experienced machinists.

Q: When should I use the manual tool clamping feature?

A: Manual tool clamping is typically used during setup and tool changes. It ensures the cutting tool is securely held, which is critical for achieving precise machining results. Always perform tool changes when the spindle is fully stopped and follow safety protocols.

Q: Where is this horizontal boring machine ideally installed?

A: This machine is best suited for manufacturing plants, heavy engineering workshops, and facilities handling large components. It requires an installation space of 4500 mm x 2500 mm, with sufficient clearance for safe operation and material handling.

Q: What are the benefits of the provided coolant system?

A: The integrated coolant system ensures tools and workpieces remain at optimal temperatures during machining, extending tool life and improving cutting performance. It also helps evacuate chips more efficiently, contributing to cleaner operations and higher workpiece quality.

Q: How does the machine contribute to productivity and operational efficiency?

A: Its high table load capacity, versatile operations, and easy mechanical controls reduce setup and cycle times. The robust spindle, broad speed and feed rate ranges, and the large working area enable efficient machining of complex or large parts, enhancing overall productivity.

Q: What types of industries or applications can benefit most from this horizontal boring machine?

A: Industries involved in heavy engineering, fabrication, power generation equipment, and component manufacturing can benefit significantly. The machine's accuracy, load capacity, and versatility make it ideal for applications where large components require precise machining and finishing.
