CNC Boring Machine 5 Axis

Get a Price/Quote

MOQ : 1 Piece

CNC Boring Machine 5 Axis Specification

Power
30 kW

Capacity
Max workpiece size: 3000 x 2000 x 1500 mm

Feature
High rigidity, full 5-axis control, digital CNC interface, automatic tool changer

Weight
Approx. 18,000 kg

Voltage
380 V / 50 Hz

Used For
Precision boring, milling, and drilling in metalworking industries

Dimension (L*W*H)
7200 x 3100 x 3000 mm

Output
High-speed precision machining

Manufacturing Year
2024

Color
Industrial Grey

Machine Type
CNC Boring Machine 5 Axis

Condition
New

Controller System
Siemens 840D SL / Fanuc Series 31i

Coolant System
High-pressure through-spindle coolant

Spindle Speed
Up to 4500 RPM

Tool Magazine Capacity
40 Tools

Repeatability
0.003 mm

Chip Removal
Automatic chip conveyor

Positioning Accuracy
0.005 mm

Spindle Taper
ISO 50

Safety System
CE certified with full enclosure and interlock

Lubrication System
Centralized automatic lubrication

Axis Travel (X/Y/Z/W/B)
3000/2000/1500/600/360

Table Load Capacity
Up to 8000 kg

CNC Boring Machine 5 Axis Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1 Week

About CNC Boring Machine 5 Axis

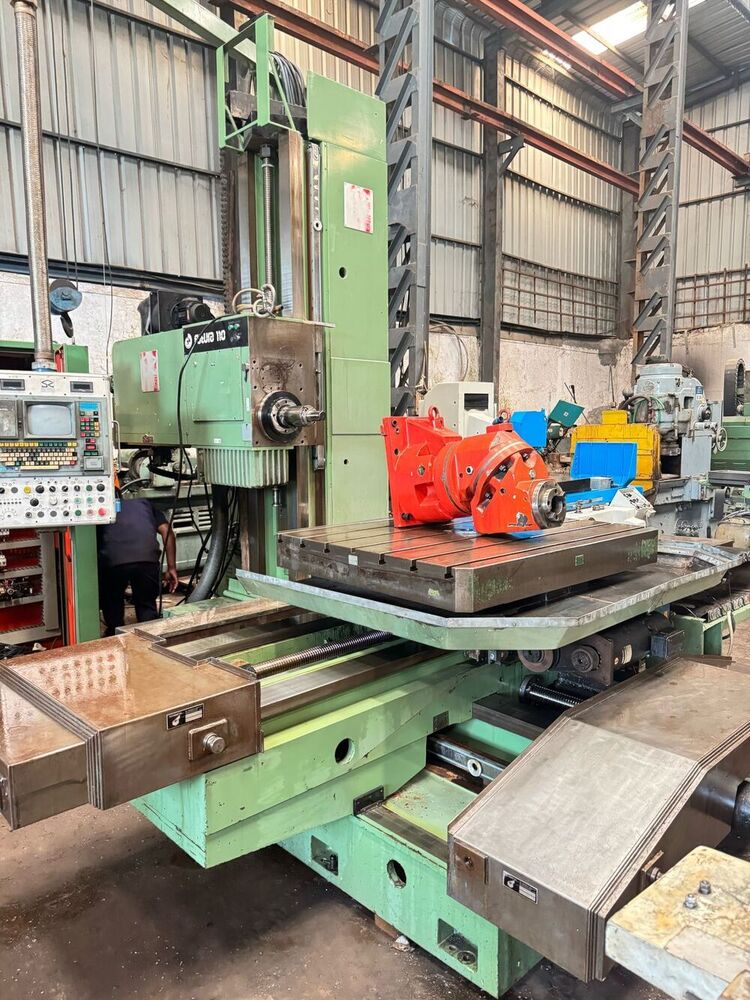

CNC Boring Machine 5 Axis

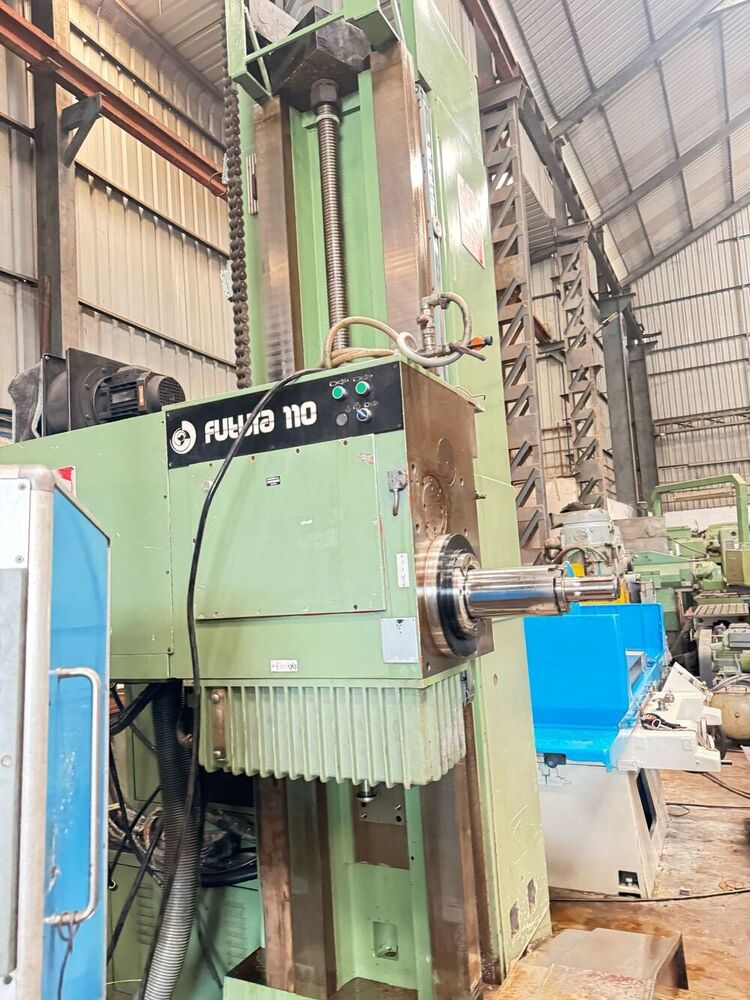

Make: SAN ROCCO

Model : FUTURA CNC

Spindle dia: 110 mm ISO-50

Spindle speed: 2500 Rpm

Spindle steps: 2 (low / high gear)

X Travel: 2000 mm

Y (vertical travel): 1500 mm

Z Travel: 1000 mm

W (quill travel): 550 mm

Table size: 1300x1100 mm

Table load capacity: 10ton

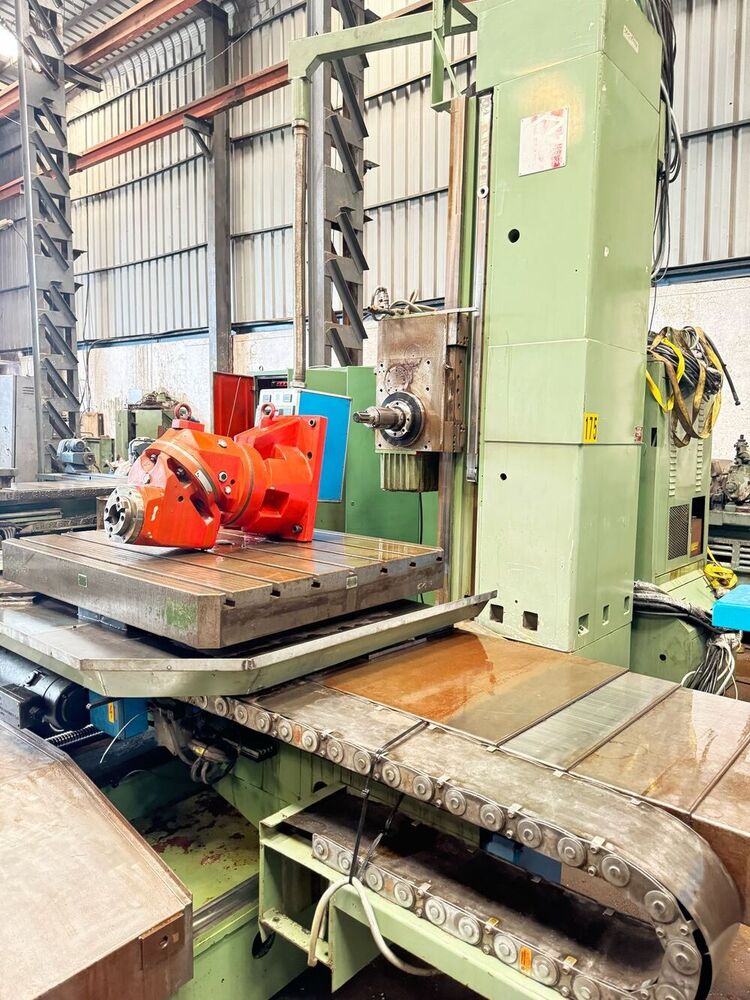

Machine with extra MILLING HEAD

Cnc : Ecs control

Precision Redefined for Metalworking

Engineered to deliver exceptional positioning accuracy of 0.005 mm and repeatability of 0.003 mm, this CNC Boring Machine is ideal for applications where minute tolerances are critical. The high rigidity and full digital CNC interface enable operators to handle complex components with streamlined programming and control, ensuring superior results in every cycle.

Intelligent Automation and Safety

With a 40-tool automatic changer and automated chip conveyor, transitions between operations are rapid and efficient. The safety system is CE-certified, featuring a fully enclosed work area with interlocks, prioritizing operator and workplace safety. A centralized automatic lubrication system, alongside robust cooling, contributes to consistent machine performance.

Built for Industrial Demands

Designed to accommodate workpieces up to 3000 x 2000 x 1500 mm and weighing up to 8000 kg, this machine excels in demanding milling, drilling, and boring tasks. With a power requirement of 380V/50 Hz and 30 kW, it suits a broad array of heavy-duty applications in metalworking, making it a valuable asset for distributors, exporters, manufacturers, and service providers.

FAQ's of CNC Boring Machine 5 Axis:

Q: How does the spindle taper of ISO 50 benefit the machining process?

A: The ISO 50 spindle taper ensures a robust connection between the spindle and tool holder, enhancing machine stability and facilitating heavy-duty cutting and precision. This leads to reduced vibrations and improved surface finish during intensive boring, milling, or drilling tasks.

Q: What is the primary usage of this 5-axis CNC Boring Machine?

A: This machine is primarily used for precision boring, milling, and drilling operations in metalworking industries. Its 5-axis capability allows for complex shaping and finishing on large workpieces, making it suitable for industries such as automotive, aerospace, and heavy machinery manufacturing.

Q: When should the high-pressure through-spindle coolant system be used?

A: The high-pressure through-spindle coolant system is used during high-speed or deep-hole machining operations. It effectively cools and lubricates the cutting tools, flushes out chips, reduces tool wear, and ensures better surface quality on finished components.

Q: Where is this CNC Boring Machine most effectively utilized?

A: This CNC Boring Machine is most effectively utilized in manufacturing plants, metal fabrication shops, and tool rooms where high-volume precision machining is required. Its design supports both production and custom-part manufacturing environments.

Q: What is the process for changing tools in this machine?

A: The machine comes equipped with a 40-tool automatic tool magazine. Tool changes are executed through the CNC controller, allowing for rapid, automated switching between tools without manual intervention, thereby increasing productivity and minimizing setup times.

Q: How does the safety system protect operators during machine operation?

A: The safety system features a CE-certified full enclosure with interlocked doors. This ensures that all moving components and machining operations are contained, preventing accidental access and reducing the risk of operator injury during use.

Q: What are the major benefits of using this 5-axis CNC Boring Machine over traditional machines?

A: Major benefits include higher machining accuracy, enhanced operational speed, full 5-axis control for complex geometries, automated tool changes, efficient chip removal, and improved safety standards. These features translate into increased productivity, lower downtime, and high-quality output tailored for modern manufacturing.
