Table Type Boring Machine

Get a Price/Quote

MOQ : 1 Piece

Table Type Boring Machine Specification

Voltage
415V

Power
15 kW

Condition
New

Dimension (L*W*H)
4200 mm x 2000 mm x 1800 mm

Manufacturing Year
2020

Used For
Industrial Boring Operations

Color
Blue & White

Weight
Approx. 6500 kg

Machine Type
Table Type Boring Machine

Capacity
Up to 6000 mm boring length

Feature
High Precision, Rigid Construction, Heavy Duty Work Capability

Output
High Efficiency, Smooth Performance

Number of Axis
3 Axis (X, Y, Z)

Control System
Semi-Automatic

Bed Type
Hardened & Ground

Maximum Load on Table
4000 kg

Feed Range
10 - 2000 mm/min

Spindle Diameter
110 mm

Coolant System
Integrated

Application
Metal Boring, Drilling, Milling

Spindle Speed Range
25 - 1200 RPM

Table Size
1600 mm x 1300 mm

Table Type Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Main Domestic Market
All India

About Table Type Boring Machine

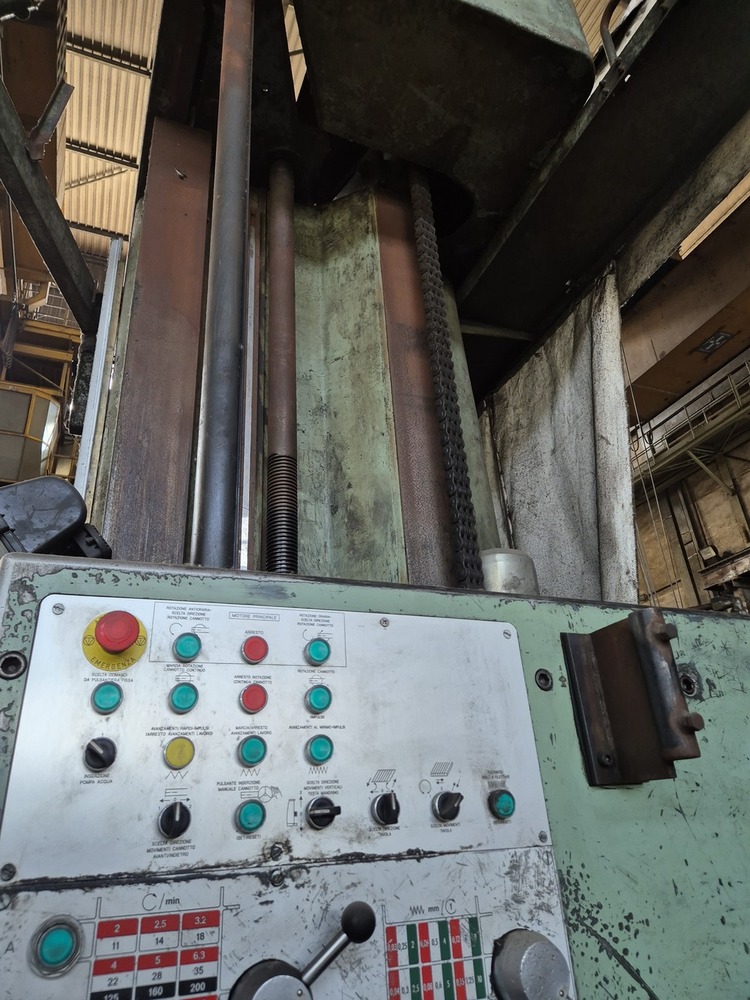

Table Type Boring Machine

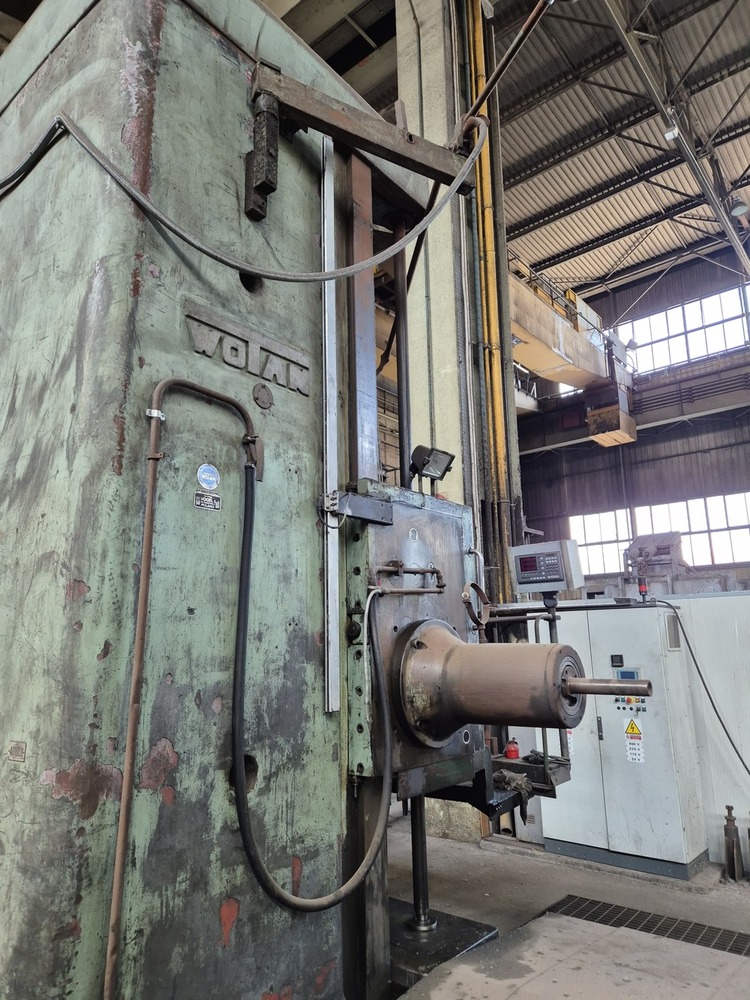

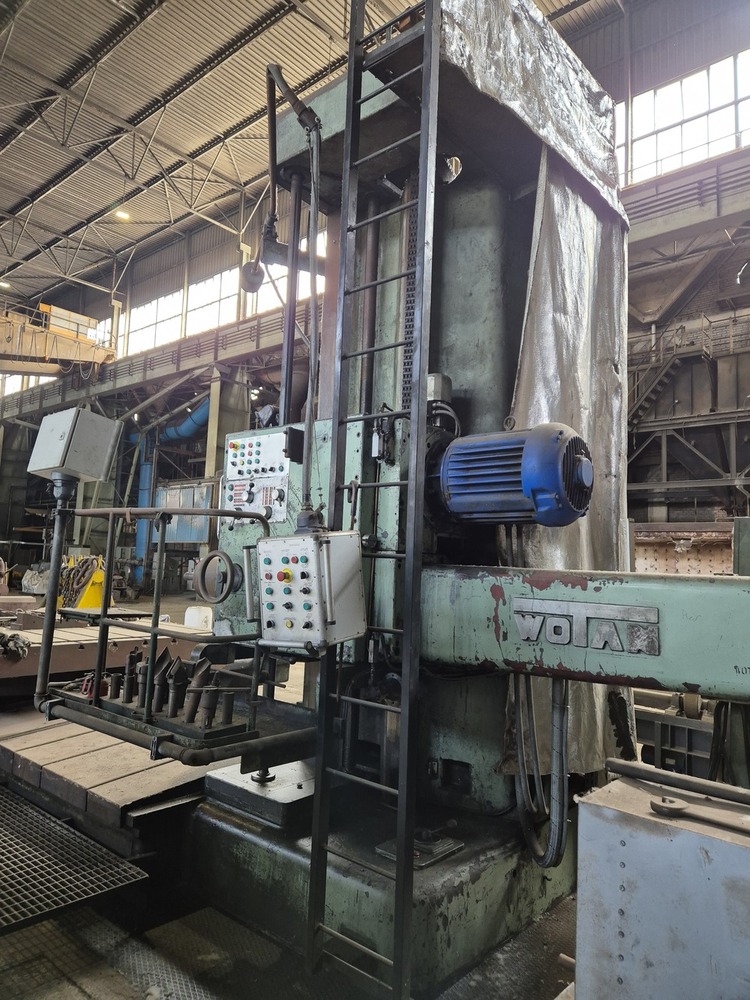

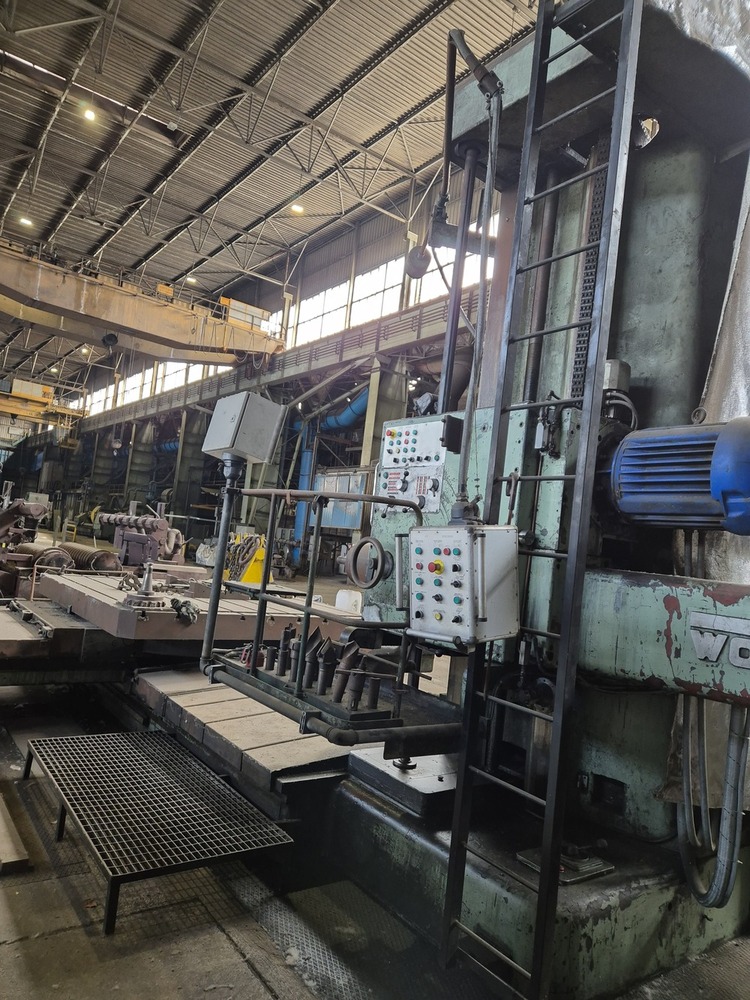

MANUFACTURER: WOTAN

MODEL/TYPE : B160S

CONTROL: CONVENTIONAL

ACHINE DESCRIPTION

SPINDLE DIAMETER:160

TOOL TAPER : Iso 55

SPINDLE MOTOR : 25Kw

X(LONGITUDINAL TRAVEL) : 3.450mm

ASSE Y (VERTICAL HEAD TRAVEL) : 2.000mm

ASSE Z ( CROSS TRAVEL) : 2.500mm

ASSE W ( SPINDLE TRAVEL): 1.300mm

TABLE SIZE : 3.000X2.500mm

TABLE LOAD : 25 Tons

WEIGHT APPROX: 50 Tons

Engineered for High-Precision Industrial Boring

This Table Type Boring Machine is specifically built for demanding industrial environments, offering high precision, reliability, and strength. Its rigid construction, 3-axis capability, and heavy-duty design support large workpieces up to 4000 kg, making it versatile for boring, drilling, and milling tasks. The machine's integrated coolant system and ground bed ensure a smooth, accurate performance, while the semi-automatic control system streamlines operation for efficiency and safety.

Adaptable Performance for Versatile Applications

With a spindle speed range from 25 to 1200 RPM and a feed range between 10 and 2000 mm/min, users can effortlessly adjust settings to accommodate various metalworking processes. The machine is suitable for industrial workshops requiring high-capacity boring, drilling, and milling, offering up to 6000 mm boring length. Its robust design enables consistent, high-efficiency output, making it an ideal solution for large-scale manufacturing needs.

FAQ's of Table Type Boring Machine:

Q: How does the integrated coolant system benefit the boring machine's operation?

A: The integrated coolant system maintains optimal temperature during metalworking processes, reducing tool wear and preventing overheating. This results in smoother performance, extended tool life, and improved surface finish on the machined workpiece.

Q: What processes can be performed with this Table Type Boring Machine?

A: This machine excels at metal boring, drilling, and milling. Its 3-axis (X, Y, Z) capability, high-precision spindle, and adjustable feed rates allow for a range of industrial boring operations, including large workpieces and deep boring applications up to 6000 mm in length.

Q: When is it suitable to use this machine for heavy-duty operations?

A: The machine is designed for industrial environments where rigidity, high load capacity (up to 4000 kg), and precise machining are crucial. Its robust construction and powerful 15 kW motor make it ideal for continuous, heavy-duty boring and milling tasks.

Q: Where is this Table Type Boring Machine best utilized?

A: This machine is best suited for industrial workshops, manufacturing plants, and metalworking facilities that require high-capacity, precise boring, and milling operations. It is particularly valuable in settings handling large metal components with complex boring or drilling needs.

Q: What is the process for operating this machine's semi-automatic control system?

A: Operators set parameters such as spindle speed and feed rate using the semi-automatic control panel, ensuring precise and repeatable operations. The system facilitates efficient workflow while still allowing for manual adjustments, combining automation with flexibility for various project requirements.

Q: What benefits does the hardened and ground bed provide?

A: The hardened and ground bed significantly enhances machine accuracy, stability, and tool life. It ensures the table remains level under heavy loads, minimizes wear, and delivers consistently precise results throughout repeated operations.
