Floor Boring Machine

Get a Price/Quote

MOQ : 1 Piece

Floor Boring Machine Specification

Used For
Heavy-duty boring and machining operations

Voltage
415V, 50Hz

Weight
Approx. 12,000 kg

Capacity
Up to 50 tons workpiece capacity

Dimension (L*W*H)
7000 mm x 2100 mm x 2200 mm

Power
22 kW

Color
Industrial Blue

Output
High-efficiency boring and machining results

Feature
High precision, rigid construction, easy operation

Condition
New

Manufacturing Year
2023

Machine Type
Floor Boring Machine

Longitudinal Table Travel
3000 mm

Lubrication System
Automatic centralized lubrication

Spindle Travel
1200 mm

Table Size
2000 mm x 1800 mm

Cross Table Travel
2000 mm

Spindle Speed Range
10 - 700 RPM

Coolant System
Integrated high-capacity coolant tank

Control System
Semi-Automatic with Digital Read-out (DRO)

Spindle Diameter
110 mm

Vertical Head Travel
1800 mm

Feed Motor Power
3.7 kW

Main Motor Type
Heavy-duty AC induction

Table Load Capacity
12,000 kg

Floor Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1 Week

About Floor Boring Machine

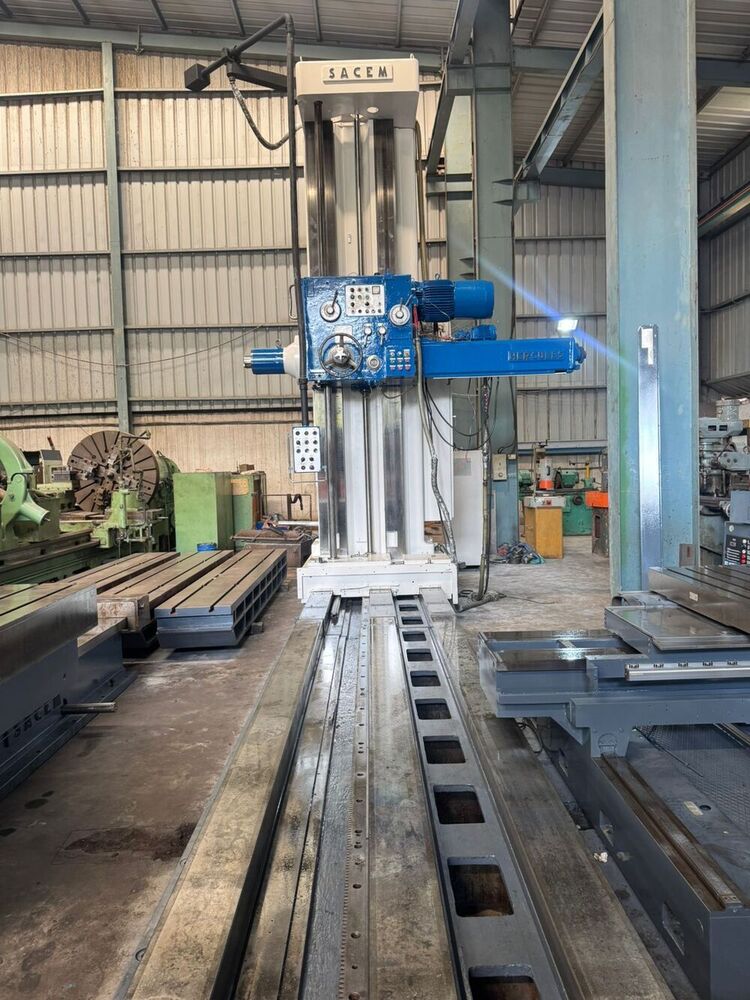

Floor Boring Machine

Make: SACEM

SPINDEL DIAMETER 130 MM

SPINDEL TAPER ISO 50

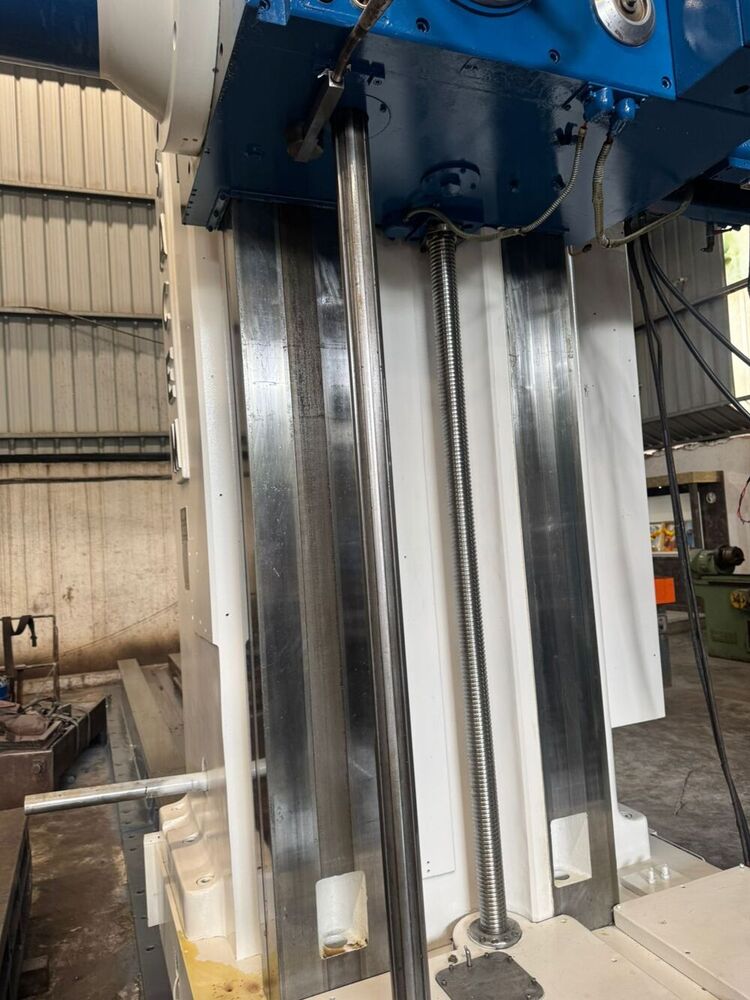

Having all ball screws

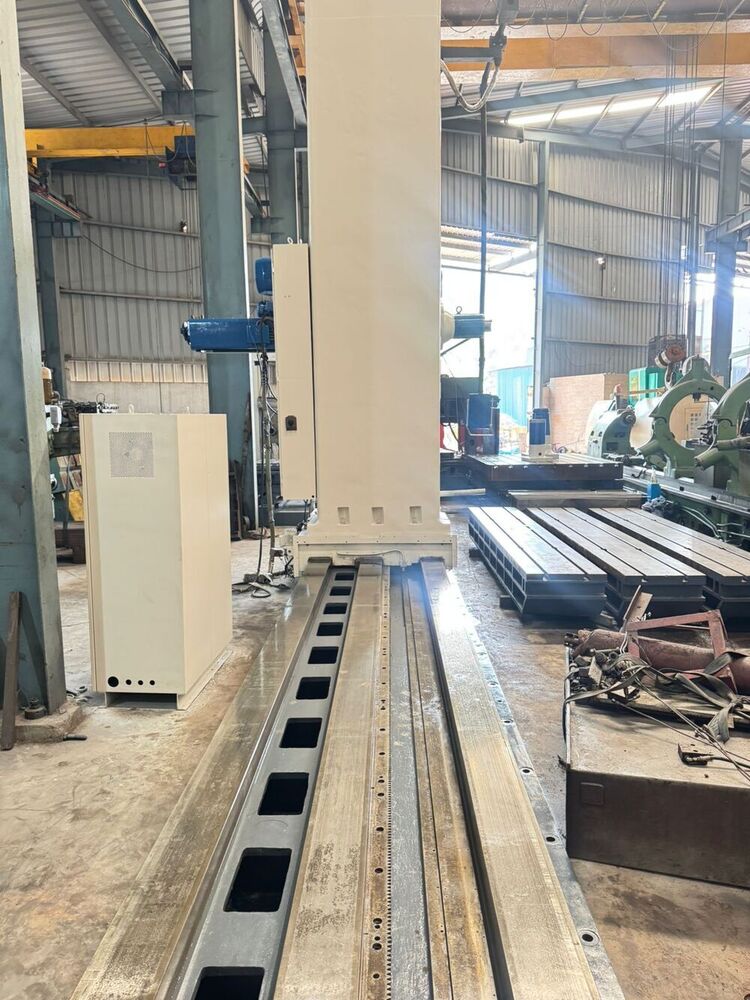

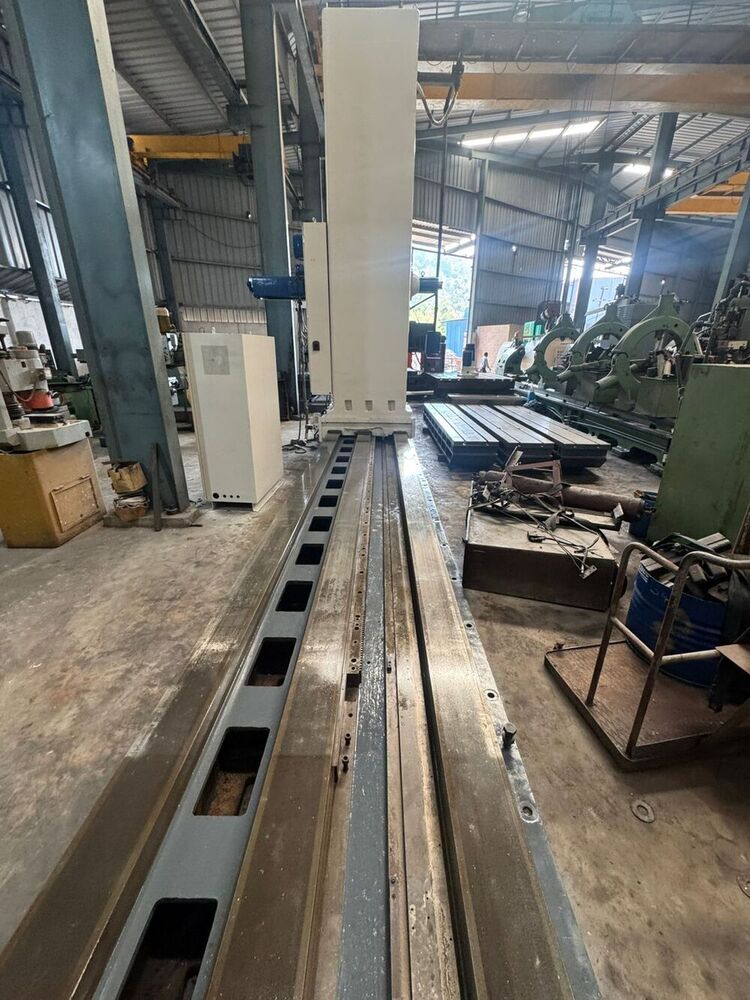

X To 12 meter

Y To 3 Meter

ROTARY TABLE: 2200 x 2200 mm

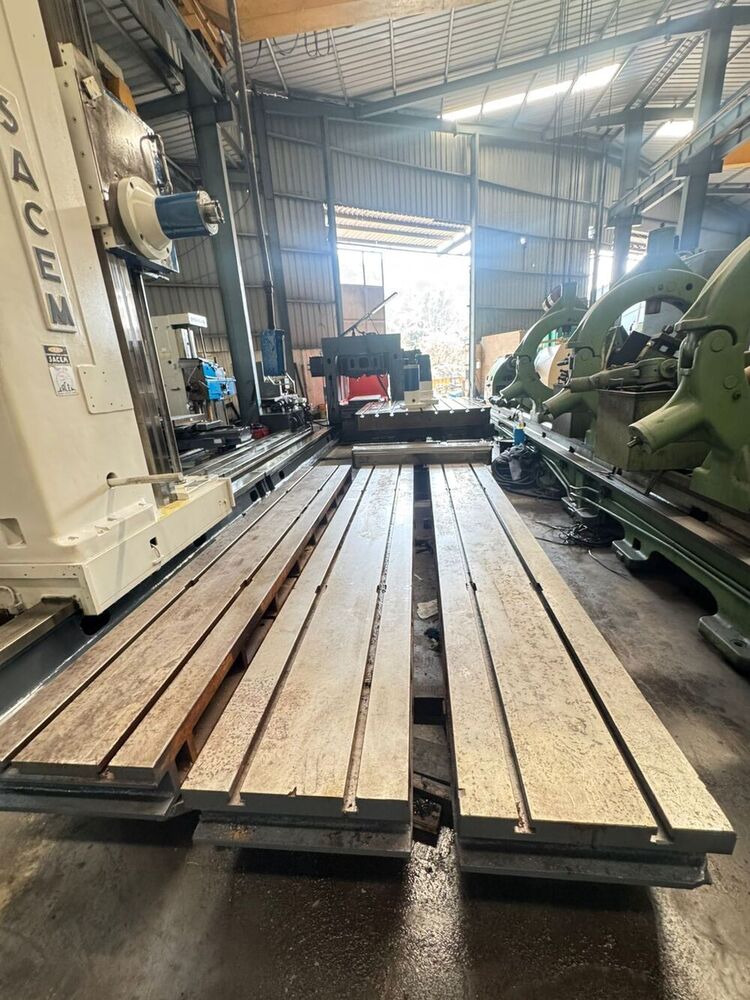

Floor plate: 4 meter x 2 Meter ( one piece )

Complete with motor pendant with spindle guide running trial

Precision Engineering for Demanding Tasks

With its 110 mm spindle diameter, up to 1200 mm spindle travel, and semi-automatic control with digital read-out, this boring machine provides consistent accuracy for intricate and large-scale machining projects. Rigid construction supports reliable performance, even during high-load operations.

Exceptional Load Handling & Work Area

This machine supports table loads up to 12,000 kg, accommodating components weighing up to 50 tons. Its broad 2000 mm x 1800 mm table and 3000 mm longitudinal travel provide ample space for large-scale milling and boring, making it suitable for heavy-duty industries.

User-Friendly and Durable Design

Integrated features such as automatic centralized lubrication and a high-capacity coolant tank ensure smooth, low-maintenance operation. The industrial blue structure is not only robust but also crafted to reduce vibration and maximize safety for operators.

FAQ's of Floor Boring Machine:

Q: How do I operate the semi-automatic Floor Boring Machine with digital read-out?

A: To operate the machine, power it on with the heavy-duty AC induction main motor. Use the control panel to set spindle speeds (10-700 RPM), feed rates, and table position. The digital read-out (DRO) system makes it easy to monitor precision and incremental batch runs. Always refer to the instruction manual for detailed guidelines.

Q: What materials and workpiece sizes can the Floor Boring Machine handle?

A: This model is designed for heavy-duty boring and machining, supporting workpieces up to 50 tons and table loads of 12,000 kg. Its wide travels and robust construction allow machining of large metal bodies, including steel, castings, and fabricated components within 2000 mm x 1800 mm on the table and up to 3000 mm travel.

Q: When should I use the integrated coolant system and automatic lubrication?

A: The integrated coolant system should be activated during all machining operations involving heat generation to maintain tool life and work accuracy. The automatic centralized lubrication system is also constantly engaged to ensure critical moving parts are properly lubricated during machine operation.

Q: Where is this Floor Boring Machine used most effectively?

A: This machine excels in industrial settings such as heavy machinery manufacturing, repair workshops, and large-scale fabrication shops, especially where large, heavy workpieces require precision machining.

Q: What is the process for setting up different workpiece operations on this machine?

A: Secure the workpiece onto the robust table, making use of the wide surface and high load capacity. Adjust the machine's longitudinal, cross, and vertical head travels to align the spindle. Select appropriate spindle speeds and feeds based on material demands, using the digital read-out for precision setup.

Q: How does this Floor Boring Machine benefit my workflow?

A: With high-efficiency output, rigid construction, and easy operation, the machine minimizes downtime and delivers consistent results for large, complex workpieces. Automatic systems for cooling and lubrication reduce maintenance needs, enhancing productivity and operator safety.
