Surface Grinding Machine

Get a Price/Quote

MOQ : 1 Piece

Surface Grinding Machine Specification

Weight
1200 kg

Feature
High rigidity, smooth movement, easy operation

Used For
Precision surface grinding of metal workpieces

Voltage
415 V

Capacity
Max Grinding Length: 450 mm; Max Grinding Width: 150 mm

Power
3 HP

Output
High surface finish and accuracy

Machine Type
Surface Grinding Machine

Dimension (L*W*H)
2000 mm x 1400 mm x 1800 mm

Condition
New

Manufacturing Year
2024

Color
Grey/Blue

Material of Construction
Heavy-duty cast iron base

Cross Feed Graduations
0.05 mm/division

Chuck Type
Magnetic Chuck

Grinding Wheel Size
200 mm x 20 mm x 31.75 mm

Coolant System
Yes, in-built

Longitudinal Movement
Hydraulic

Lubrication System
Automatic

Spindle Speed
2700 rpm

Control Type
Manual

Max Table Speed
25 m/min

Work Table Size
500 mm x 200 mm

Surface Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1 Week

About Surface Grinding Machine

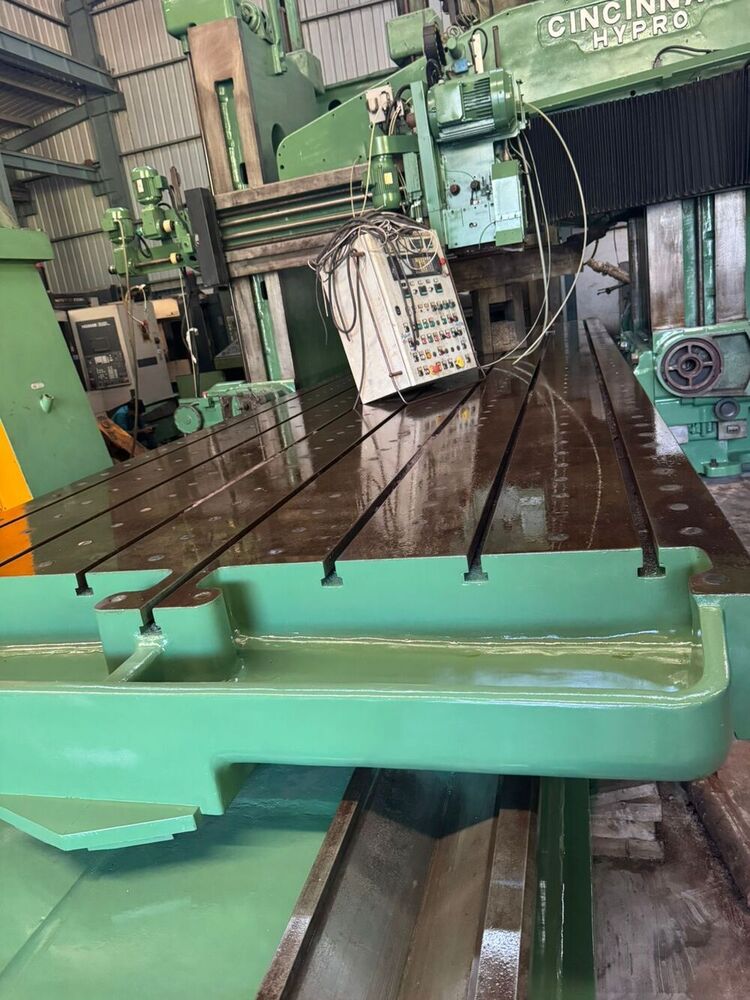

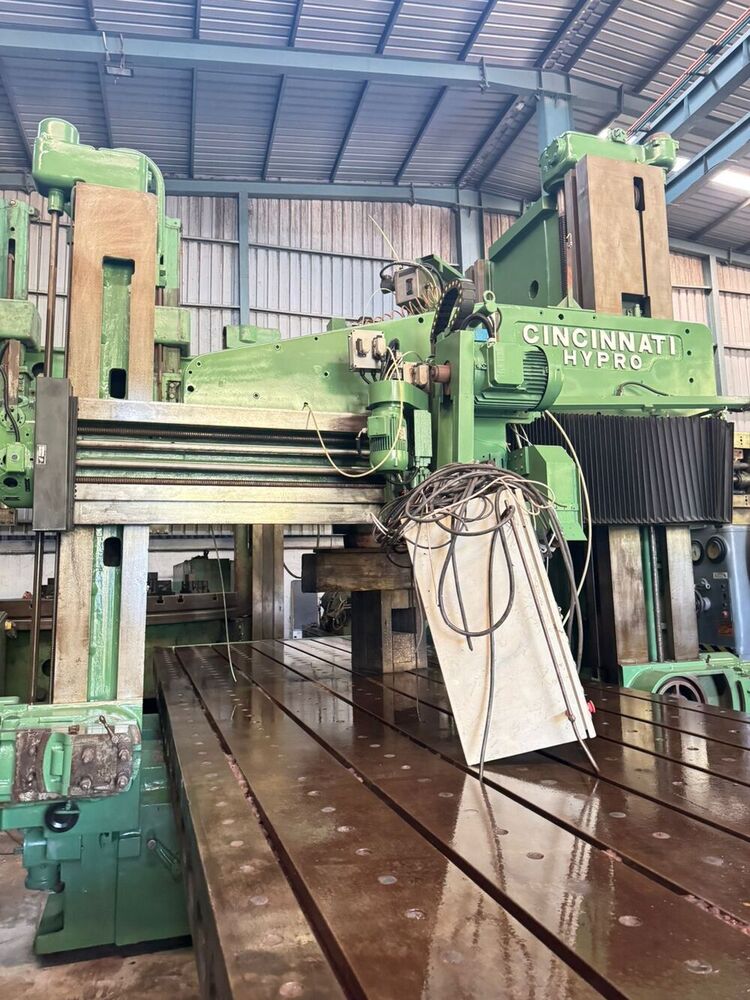

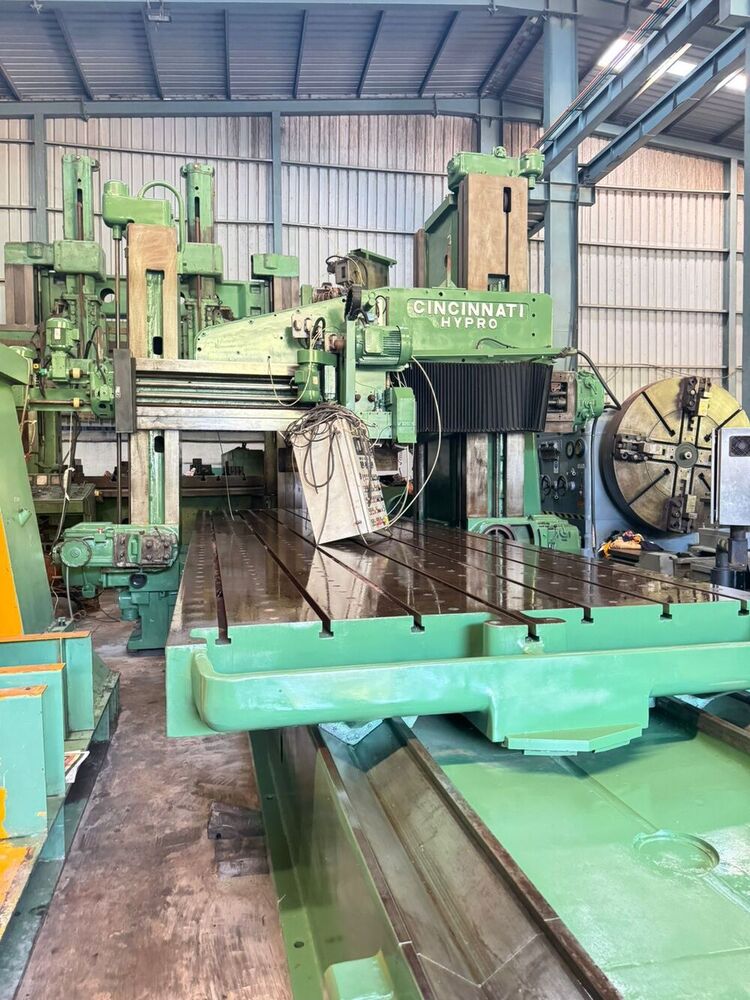

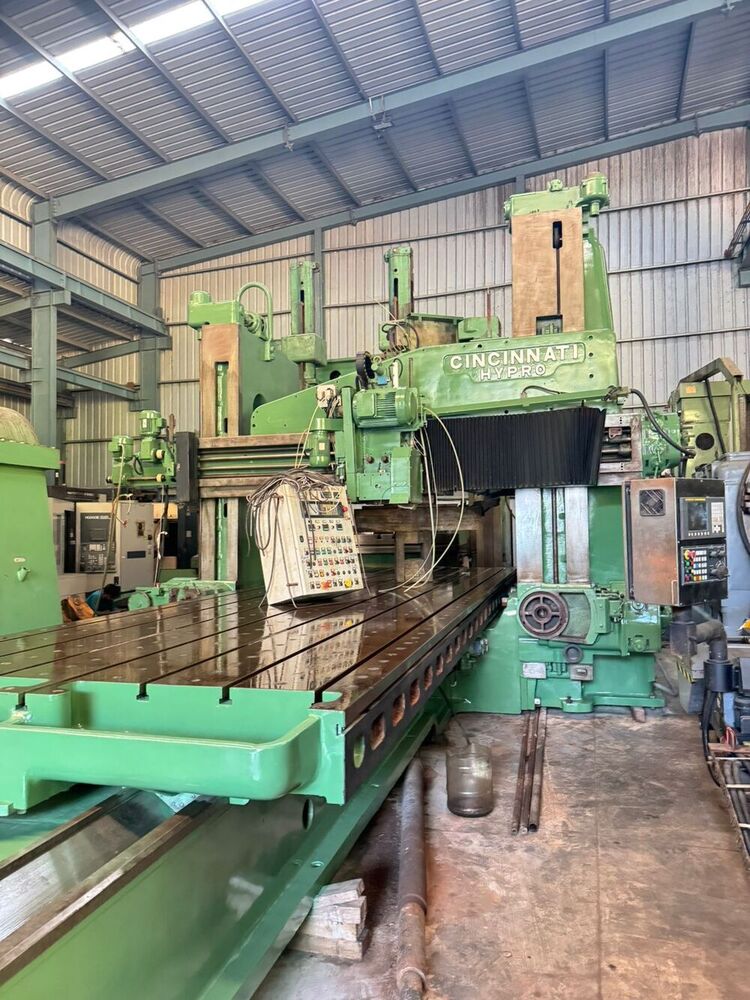

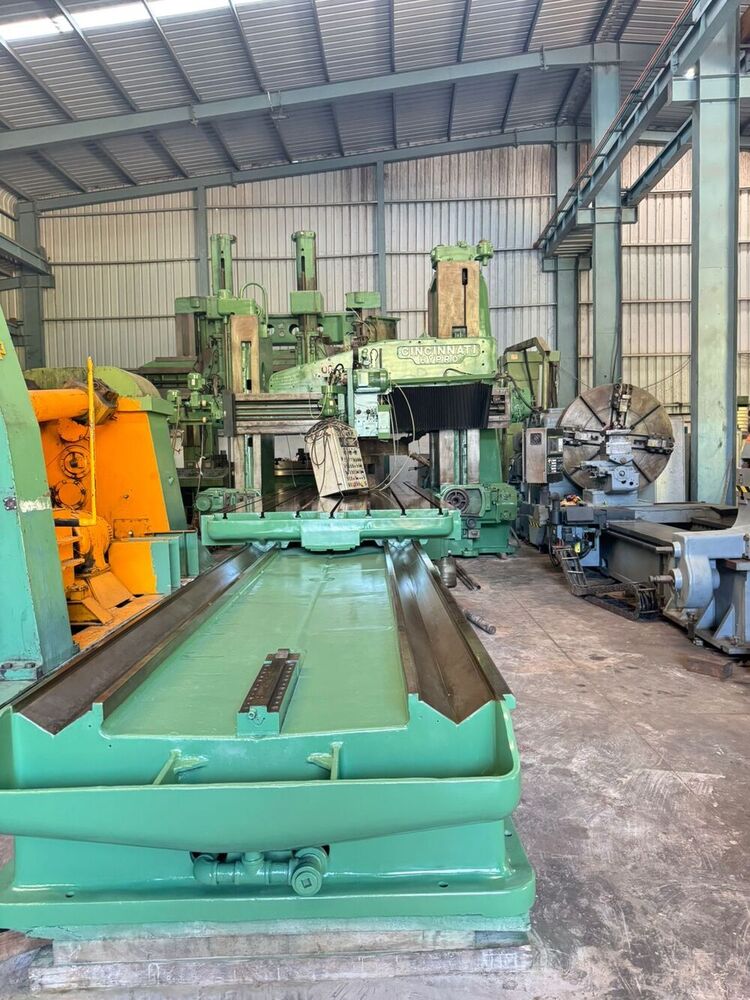

Surface Grinding Machine

Make : Cincinnati Hypro

Table size : 8500mm x 2300mm

Between coloum : 2600mm

Vertical : 1800mm

With Grinding head

One planning head

Panel, Pendant, Motors complete.

Precision Engineering for Superior Finishes

This surface grinding machine is engineered for precise material removal and exceptional surface finishes. With a high-performance spindle running at 2700 rpm and hydraulic longitudinal movement, operators can achieve uniform results on metal workpieces. The magnetic chuck and cross feed graduations (0.05 mm/division) allow for meticulous adjustments during grinding operations, making it ideal for tool rooms and production environments seeking consistent quality.

Robust Construction and User-Friendly Operation

Constructed with a heavy-duty cast iron base, this surface grinder delivers outstanding rigidity and vibration dampening. The in-built coolant and automatic lubrication systems minimize maintenance and increase machine longevity. Manual controls offer intuitive operation, while the ergonomic design and reliable hydraulic mechanisms ensure smooth movement of the work table.

FAQ's of Surface Grinding Machine:

Q: How does the surface grinding machine achieve a high-quality surface finish?

A: The machine uses a precisely balanced grinding wheel rotating at 2700 rpm, combined with a magnetic chuck for secure workpiece holding, hydraulic longitudinal movement, and fine cross feed adjustments to ensure smooth, consistent material removal and superior surface finishes on metal components.

Q: What types of workpieces can be processed with this machine?

A: This surface grinding machine is designed primarily for precision surface grinding of various metal workpieces, making it suitable for industrial components, machine parts, dies, and tools requiring a fine, flat finish.

Q: When should the automatic lubrication and coolant systems be engaged during operation?

A: Both the automatic lubrication and in-built coolant systems are designed to function continuously during machine operation, ensuring optimal performance, reduced heat buildup, and extended life for both machinery and grinding tools.

Q: Where can this surface grinding machine be installed?

A: With dimensions of 2000 mm x 1400 mm x 1800 mm and weighing 1200 kg, the machine should be installed in a well-leveled, vibration-free industrial workshop or tool room with access to 415 V power supply and proper ventilation.

Q: What is the process for grinding a metal workpiece on this machine?

A: Place the workpiece securely on the magnetic chuck, select the appropriate spindle and table speeds, adjust cross feed graduations, and activate the hydraulic movement and coolant system. Carefully guide the grinding wheel over the metal surface for uniform finishing.

Q: What are the main benefits of using this surface grinding machine for manufacturers?

A: Manufacturers benefit from the machine's high rigidity, easy manual operation, efficient cooling and lubrication, and consistent accuracy, all contributing to improved productivity, reduced downtime, and reliable high-quality finishes.
