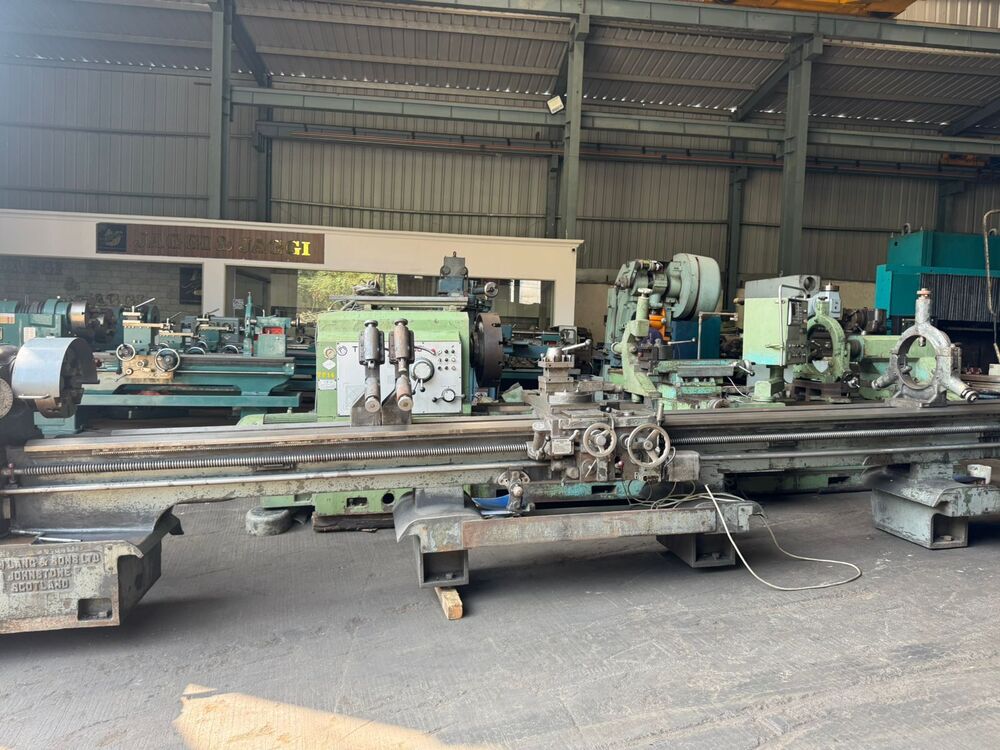

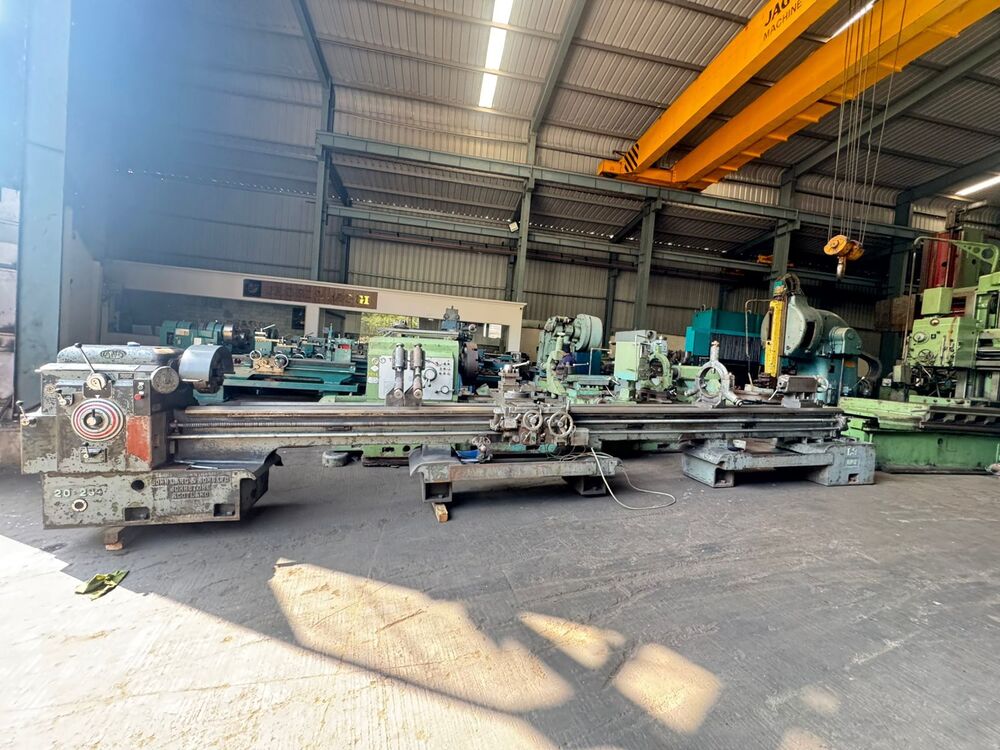

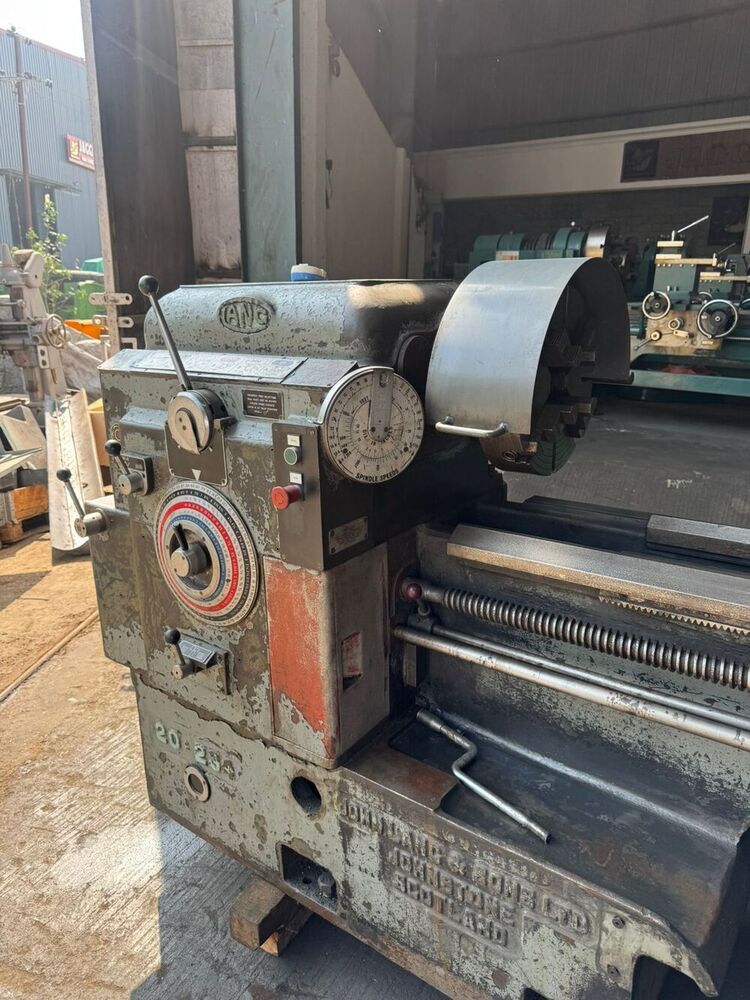

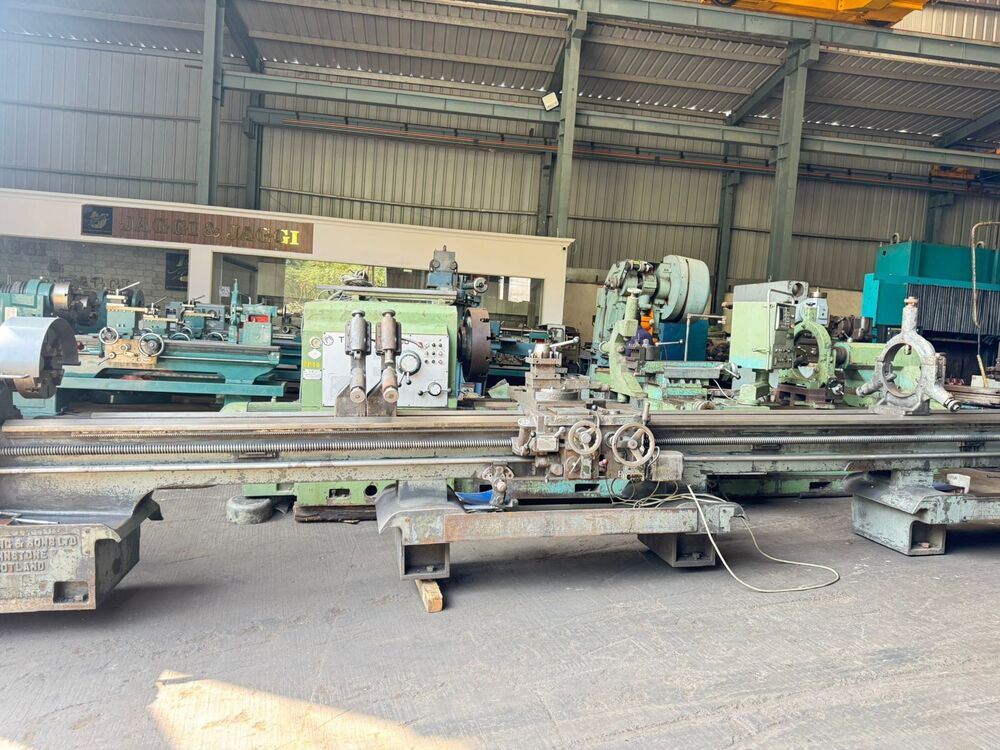

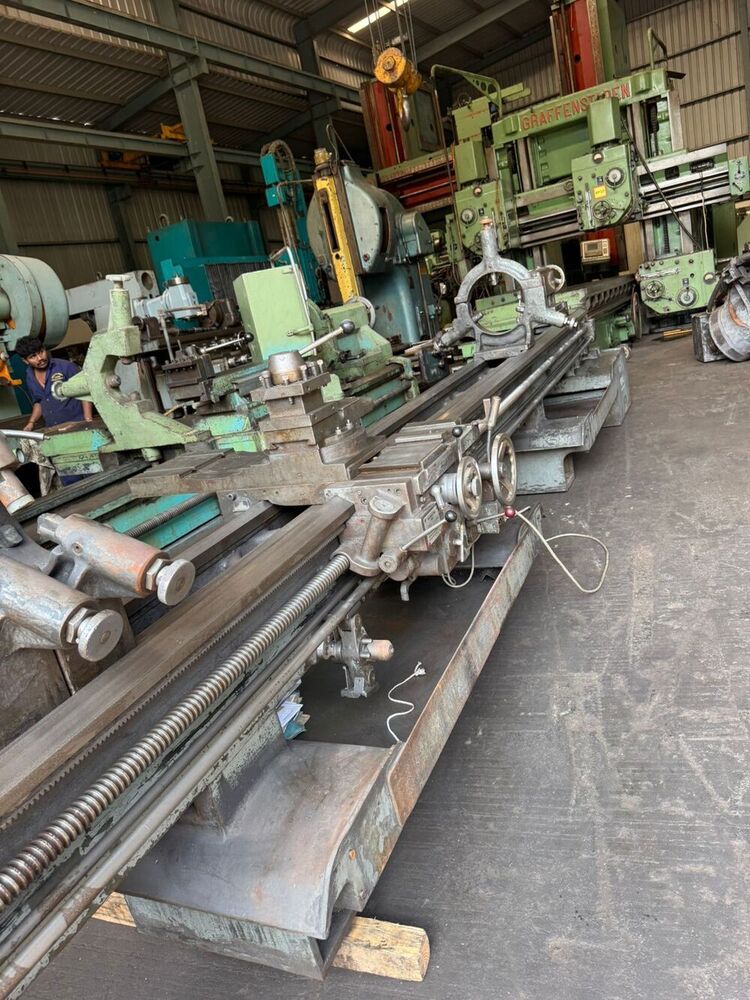

Lang Horizontal Lathe Machine

Get a Price/Quote

MOQ : 1 Piece

Lang Horizontal Lathe Machine Specification

Output
Up to 1400 rpm

Dimension (L*W*H)
Approximately 3500 x 1200 x 1400 mm

Weight
Approx. 3000 kg

Used For
Metal Turning, Facing, Threading, Boring

Power
10 HP

Machine Type
Horizontal Lathe Machine

Condition
Used

Voltage
380-415 V

Manufacturing Year
2021

Feature
High Precision, Rigid Construction, Smooth Operation

Color
Blue-Grey

Capacity
600 mm Swing over Bed, 2000 mm between Centers

Coolant System
Integrated

Tool Post
4-Way

Main Motor Make
Siemens (or equivalent European Brand)

Gearbox
Multi-speed, Manual Change

Bed Type
Hardened and Ground

Tailstock
Manual with MT4 taper

Material
Cast Iron Body

Number of Tool Holders
4

Chuck Size
315 mm

Lead Screw Diameter
40 mm

Longitudinal Feed Range
0.05-1.2 mm/rev

Spindle Speed Range
20-1400 rpm

Spindle Bore
80 mm

Lang Horizontal Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
1 Week

About Lang Horizontal Lathe Machine

Swing Over Bed	500 mm
Spindle Bore	90mm

Make ; Lang
500mm Swing Over Bed,
6000mm between centres,
350 mm 4 jaw,
13.3 - 1295 RPM,
90mm spindle bore,
fixed & travelling steady,
Rapids to saddle
Complete with chuck

Hardened and Ground Bed for Precision

The bed of the Lang Horizontal Lathe Machine is hardened and ground, ensuring exceptional wear resistance and maintaining accuracy during prolonged use. This construction aspect not only enhances cutting precision but also contributes to the machine's overall durability in demanding environments, making it ideal for continuous metalworking operations.

Versatile Spindle and Feed Options

With an 80 mm spindle bore, 315 mm chuck, and spindle speeds ranging from 20 to 1400 rpm, the machine accommodates a variety of workpiece sizes and metals. The longitudinal feed range of 0.05-1.2 mm/rev and multi-speed gearbox allow operators to select optimal settings for threading, turning, facing, and boring processes.

Integrated Coolant and Robust Build

The lathe incorporates an integrated coolant system for seamless operation and improved tool longevity. Constructed with a rigid cast iron body and weighing approximately 3000 kg, this model offers stability even during intensive machining tasks, reducing vibrations and enabling smooth operation for high-precision workpieces.

FAQ's of Lang Horizontal Lathe Machine:

Q: How can the Lang Horizontal Lathe Machine be utilized for different metalworking operations?

A: This lathe is designed for a range of metalworking tasks, including metal turning, facing, threading, and boring. Its adjustable spindle speed and feed range enable operators to tailor the machine's performance according to the material and desired operation, ensuring accurate and efficient results.

Q: What benefits does the hardened and ground bed provide for machining?

A: A hardened and ground bed enhances wear resistance and dimensional accuracy, which helps maintain machining precision over long periods. This feature is crucial for industries requiring consistent quality and reliability in production.

Q: When should the integrated coolant system be used during operation?

A: The integrated coolant system should be activated during prolonged or intensive cutting processes to minimize tool wear, dissipate heat, and improve the finished surface quality of metal parts. This is especially important when working with hard or heat-sensitive materials.

Q: Where is this machine best suited for installation?

A: Given its size (3500 x 1200 x 1400 mm) and weight (around 3000 kg), the Lang Horizontal Lathe Machine is ideal for installation in industrial workshops, manufacturing plants, or tool rooms with robust flooring and ample space for safe operation and maintenance.

Q: What process does the manual tailstock with MT4 taper facilitate?

A: The manual tailstock with MT4 taper allows for the secure mounting of various centers, drills, or reamers. This supports long workpieces during turning and enables precision operations such as drilling and boring along the workpiece axis.

Q: How does the machine's construction contribute to its overall performance?

A: The rigid cast iron body and precise gear mechanisms ensure reduced vibrations and stable machining. Combined with the 4-way tool post and high-power Siemens main motor, the machine delivers smooth operation, high cutting accuracy, and long service life.

Q: What are the primary benefits for distributors, manufacturers, and service providers in using this machine?

A: Distributors, manufacturers, and service providers benefit from the machine's versatility, reliability, and efficiency. Its capacity to handle large workpieces and its precision features ensure high-quality results for a broad range of metalworking applications, enhancing productivity and meeting diverse customer requirements.
