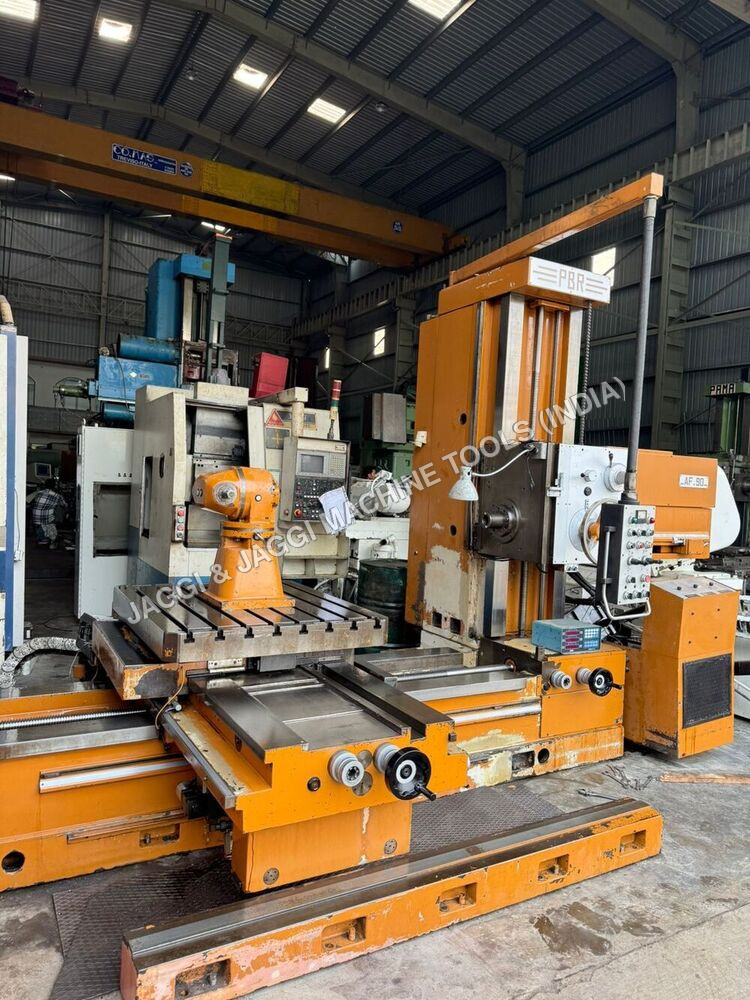

Horizental Boring Machine

Get a Price/Quote

MOQ : 1 Piece

Horizental Boring Machine Specification

Weight
7500 kg

Power
15 kW

Feature
Heavy-duty construction, high accuracy, easy operation

Dimension (L*W*H)
3200 mm x 1800 mm x 2100 mm

Used For
Precision boring, drilling, milling, and facing operations

Voltage
415 V, 3 Phase

Capacity
Up to 80 mm boring diameter

Machine Type
Horizontal Boring Machine

Color
Industrial Blue

Manufacturing Year
2023

Output
High precision machining

Condition
New

Noise Level
Low (80 dB)

Vertical Travel (Z Axis)
1200 mm

Spindle Taper
ISO 50

Spindle Speed Range
25 - 1200 RPM

Control System
Manual / Semi-Automatic

Chuck Size
250 mm

Automatic Feed
Available

Coolant System
Equipped

Longitudinal Travel (X Axis)
1800 mm

Bed Type
Rigid Cast Iron Bed

Max Table Load
3500 kg

Cross Travel (Y Axis)
1500 mm

Table Size
1300 mm x 1100 mm

About Horizental Boring Machine

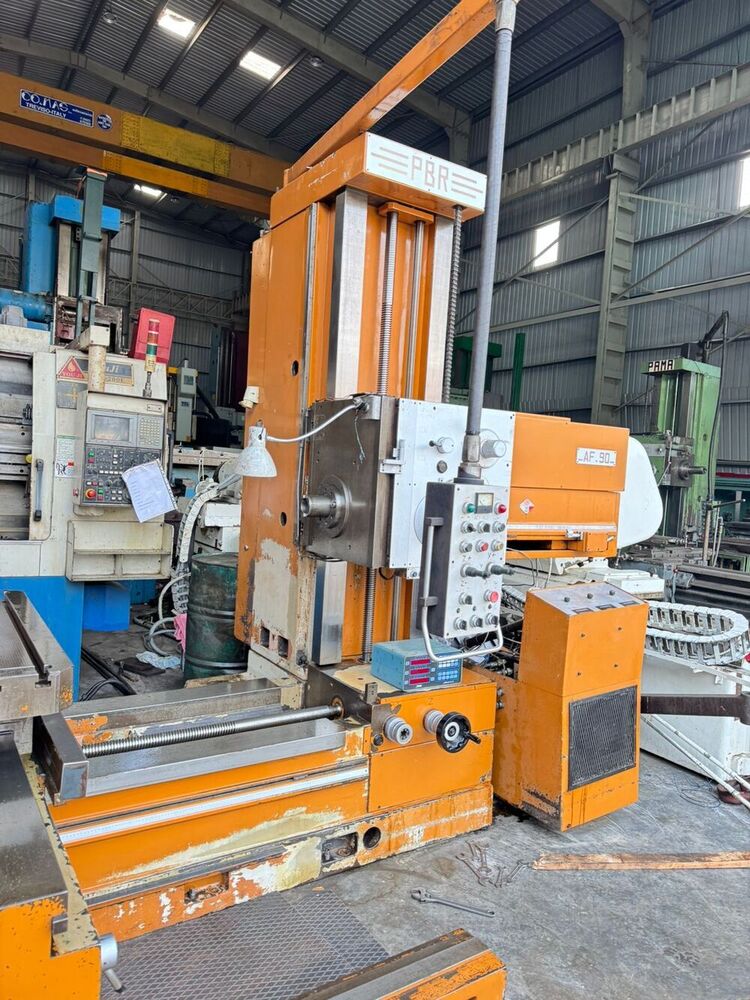

Make: PBR (Italian)

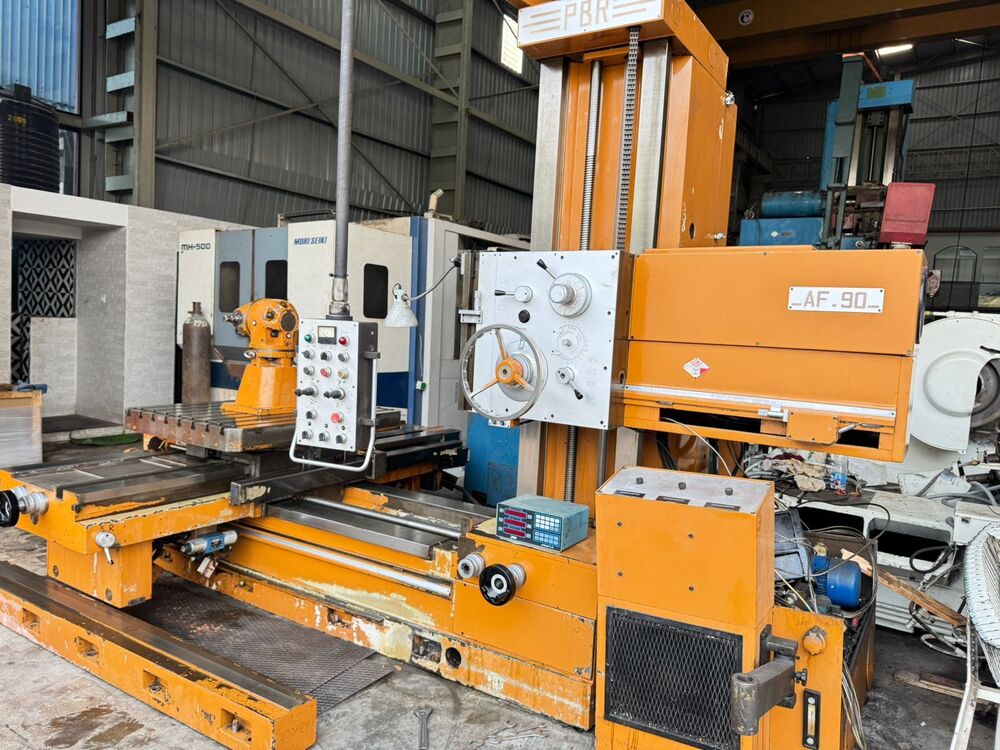

Model: AF 90

Spindle ; 90mm (ISO 50)

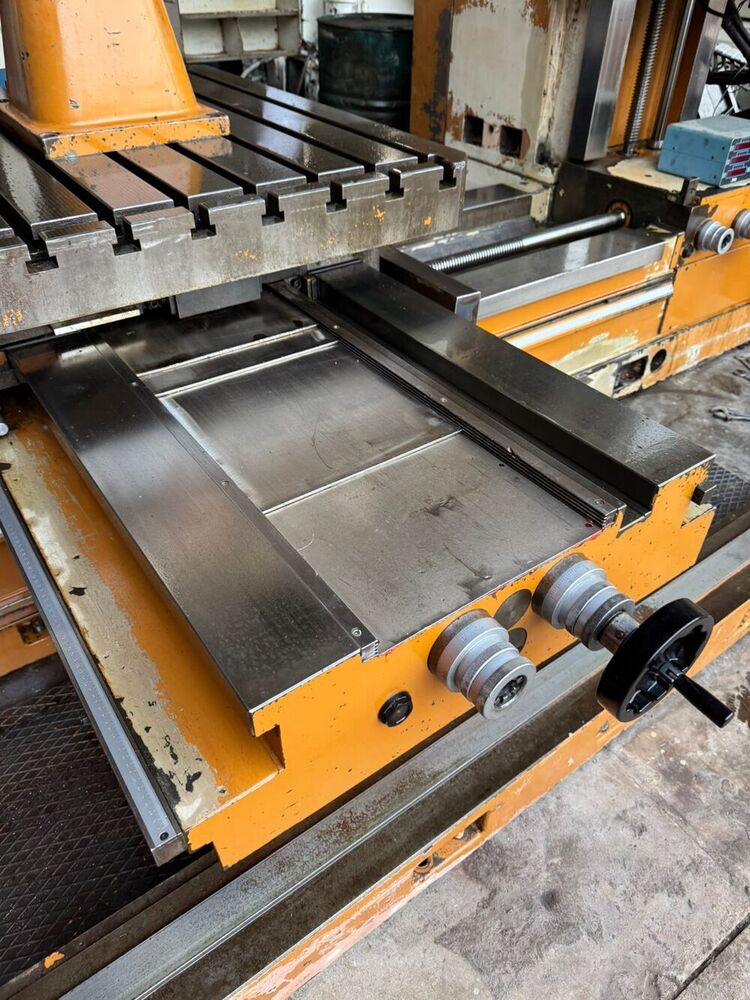

Table size: 1200mm x 1000mm

Cross: 1800mm

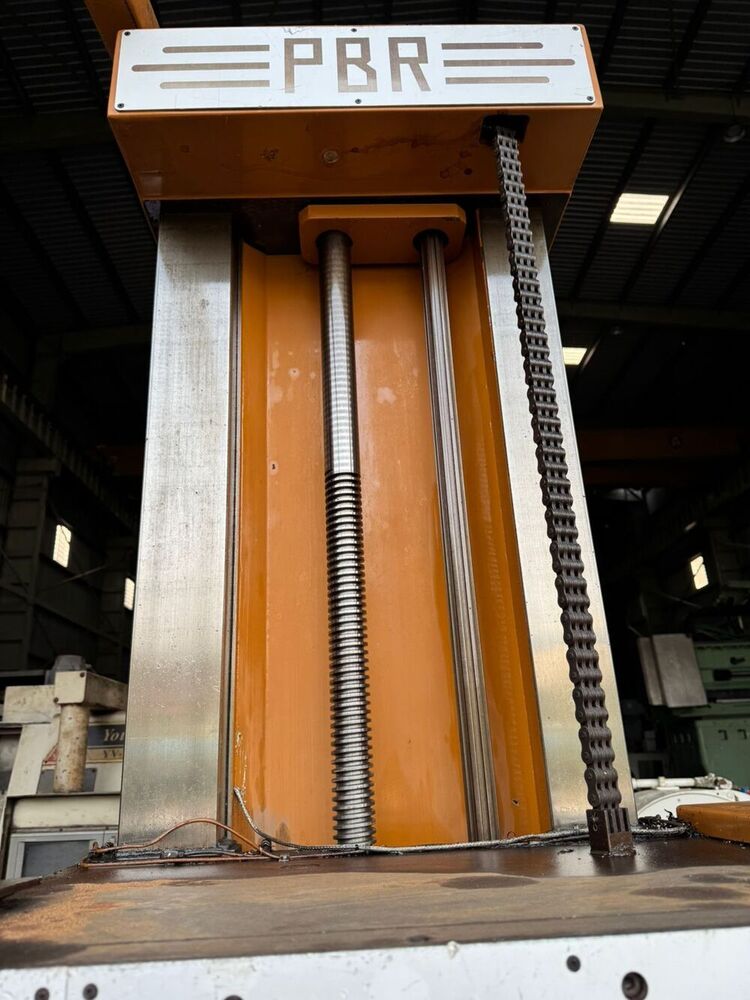

Vertical 1300mm

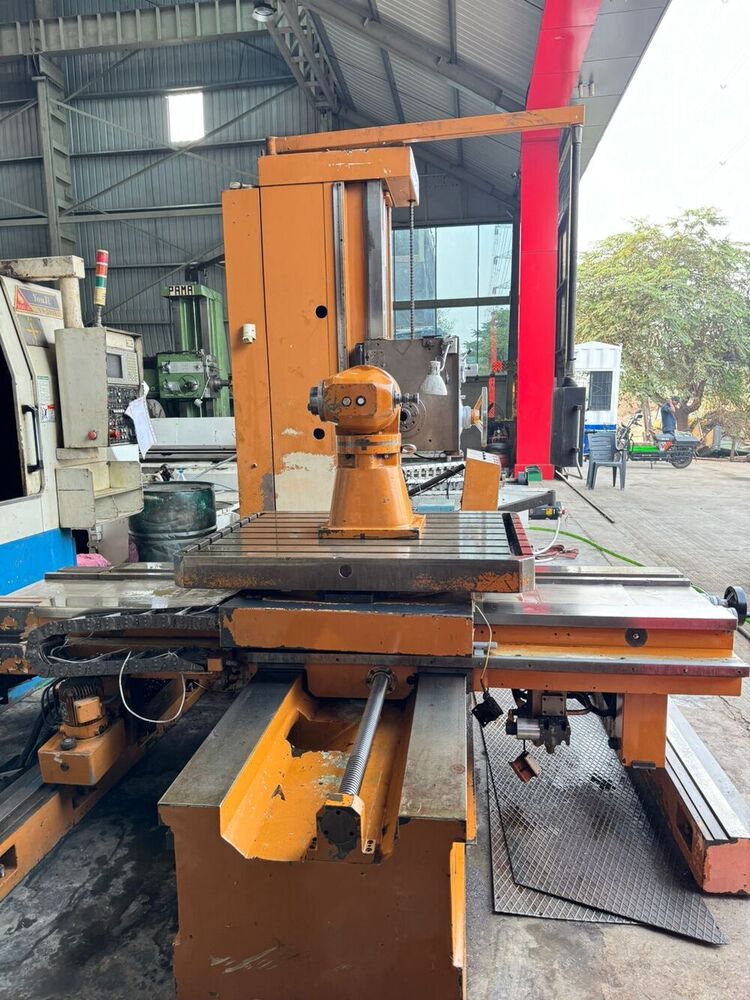

Milling Head

Harden Bed, Excellent Machine

With Full Running Trial.

Powerful Performance with Versatile Functions

This horizontal boring machine easily handles demanding machining tasks, including precision boring, drilling, milling, and facing. With a boring capacity of up to 80 mm and longitudinal travel up to 1800 mm, it meets the requirements of varied industrial applications. Its robust cast iron bed and high table load capacity ensure smooth and accurate operation for large and complex workpieces.

Precision Engineering and Heavy-Duty Construction

Built for high-accuracy tasks, the machine features a rigid cast iron bed, ISO 50 spindle taper, and advanced automatic feed system for unmatched precision. The equipped coolant system and low noise levels make it ideal for prolonged operation in professional settings. Suitable for workshops demanding reliability and heavy-duty performance, it delivers consistent machining quality.

FAQ's of Horizental Boring Machine:

Q: How do I operate the horizontal boring machine for precision tasks?

A: To operate the machine, set the spindle speed as required (25-1200 RPM), adjust the table using its longitudinal, cross, or vertical travel options, and use the automatic feed for consistent work. Ensure the workpiece is within the 3500 kg load capacity and refer to the control panel for manual or semi-automatic operation modes.

Q: What materials and workpiece sizes can this machine handle?

A: The machine is suitable for a wide range of metals and composite materials, accommodating workpieces up to 1300 mm x 1100 mm in size and weights reaching 3500 kg. Its capacity allows for boring diameters up to 80 mm, making it ideal for large industrial components.

Q: When is routine maintenance recommended for this boring machine?

A: Routine maintenance is suggested after every production cycle or as advised in the user manual. Essential checks include lubricating moving parts, cleaning the coolant system, and inspecting for wear on the spindle and feed mechanisms to ensure optimal performance and longevity.

Q: Where can this horizontal boring machine be installed?

A: This machine is well-suited for installation in industrial workshops, manufacturing facilities, and engineering service centers where heavy and precise machining work is required. Its dimensions (3200 mm x 1800 mm x 2100 mm) and weight (7500 kg) call for solid, level flooring and adequate space for safe operation.

Q: What is the process for changing the spindle speed or feed rate?

A: Spindle speed and feed rate can be adjusted using the machine's control system. For speed, choose the appropriate setting between 25-1200 RPM. The feed rate is effortlessly adjusted through the automatic feed system for seamless transitions depending on the operation required.

Q: How does this machine improve machining accuracy and productivity?

A: The machine's rigid construction, precision spindle, and automatic feed ensure minimal vibration and maximum stability during operation. The high power (15 kW motor) and versatile travels allow for efficient setup and processing, enhancing both the quality and speed of your machining output.

Q: What are the benefits of choosing this machine from an Italy-based supplier?

A: Sourcing from an Italian distributor, exporter, manufacturer, and service provider ensures high European quality, advanced engineering, and reliable after-sales support. The 2023 model's state-of-the-art features provide superior value for precision engineering needs.
