GANTRY VMC

Get a Price/Quote

MOQ : 1 Piece

GANTRY VMC Specification

Color
Industrial Grey

Manufacturing Year
2023

Weight
Approx. 22000 kg

Condition
New

Output
High precision finished components

Dimension (L*W*H)
8000 mm x 4200 mm x 4000 mm

Feature
High rigidity structure, large worktable, superior accuracy, advanced CNC controller, automatic tool changer

Power
30 kW main spindle motor

Machine Type
Gantry Vertical Machining Center (VMC)

Voltage
380V / 415V, 50Hz

Capacity
Worktable load capacity up to 20,000 kg

Used For
Precision metal cutting, heavy-duty milling, drilling, and surface finishing applications

Work Table Size
3000 mm x 2000 mm

Max Rapid Traverse
15 m/min (X/Y/Z axes)

Repeatability
0.008 mm

Spindle Taper
BT50

Machine Frame
Heavy-duty Meehanite cast iron

Protection System
Full enclosure with sliding doors

Table Surface
T-slotted, hardened and ground

Coolant System
Equipped with high-flow flood coolant system

Operator Interface
Color LCD display, multiple language support

Tool Magazine Capacity
24 tools, automatic tool changer

Lubrication System
Automatic central lubrication

Installation Requirement
Concrete foundation required

Travel X/Y/Z (mm)
3000 / 2000 / 1000

Positioning Accuracy
0.01 mm

CNC Controller
Siemens / Fanuc (option)

Spindle Speed Range
40 - 6000 RPM

GANTRY VMC Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

About GANTRY VMC

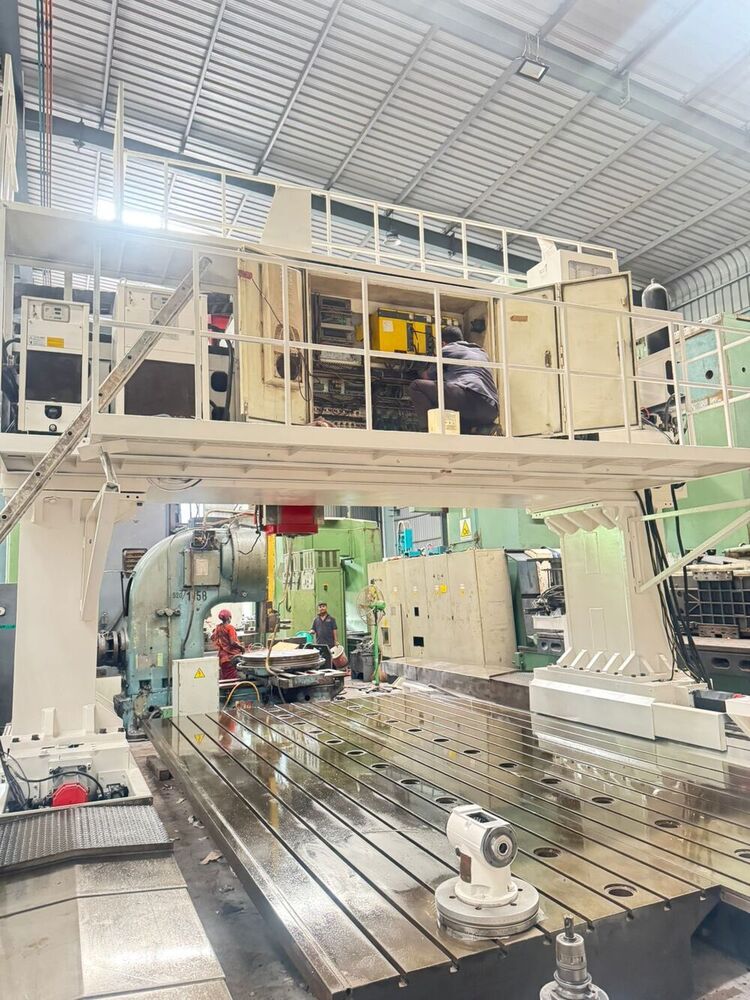

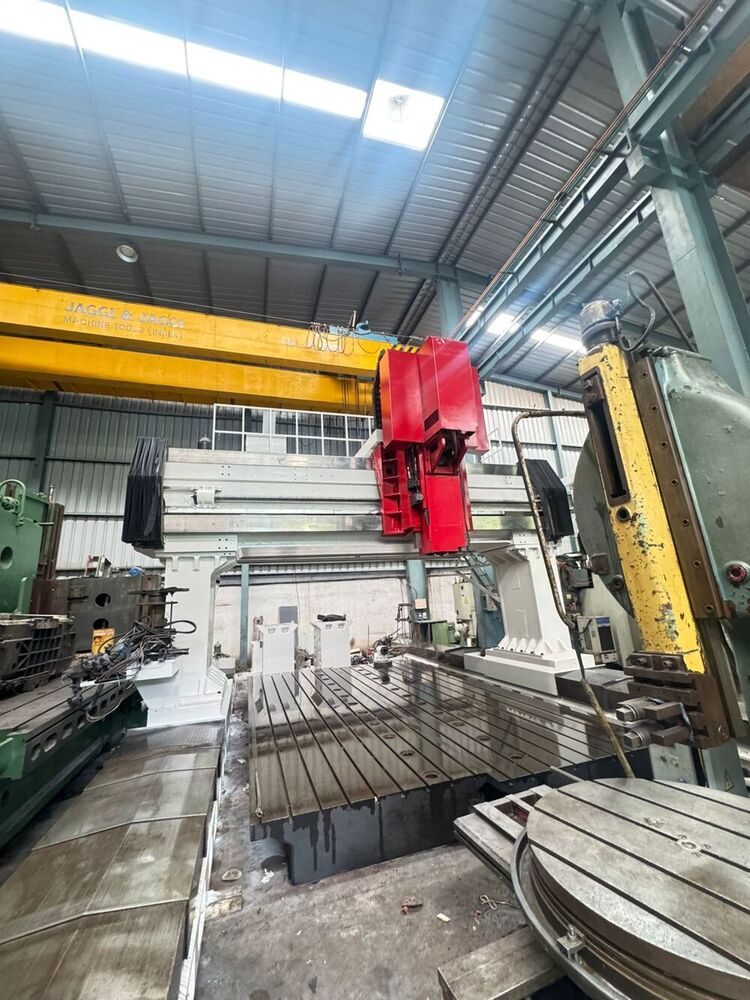

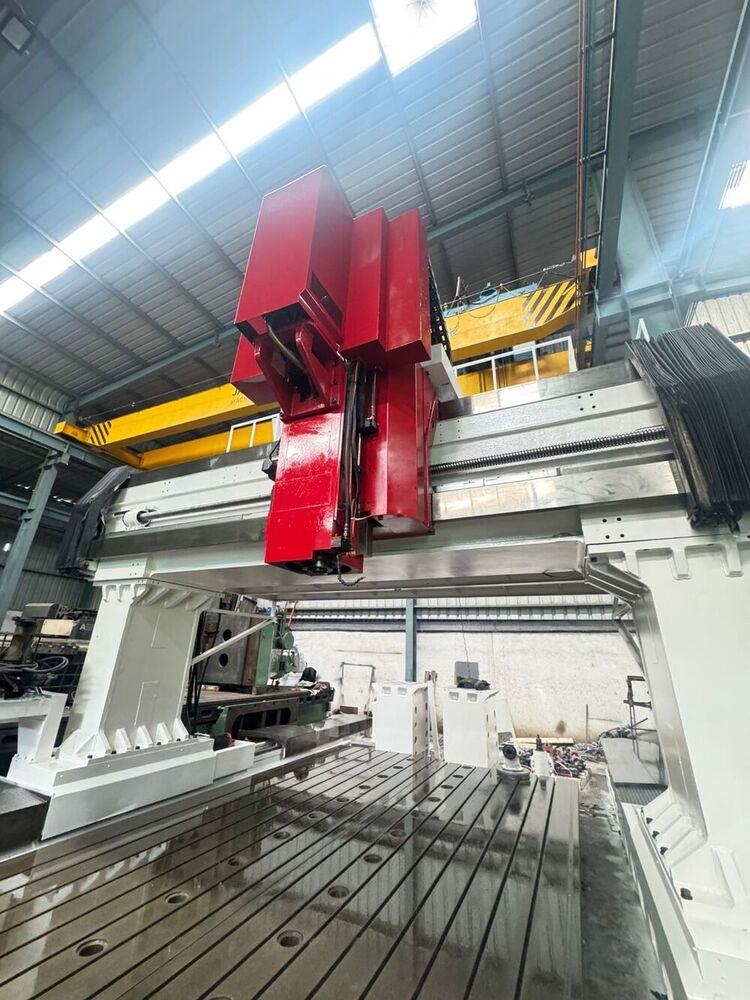

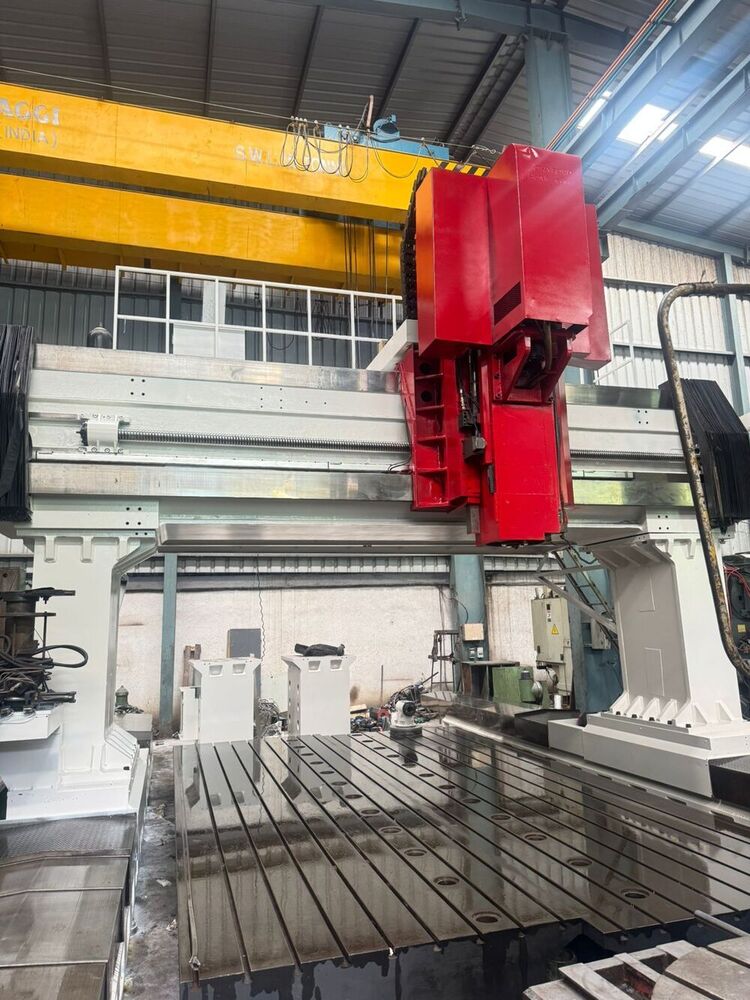

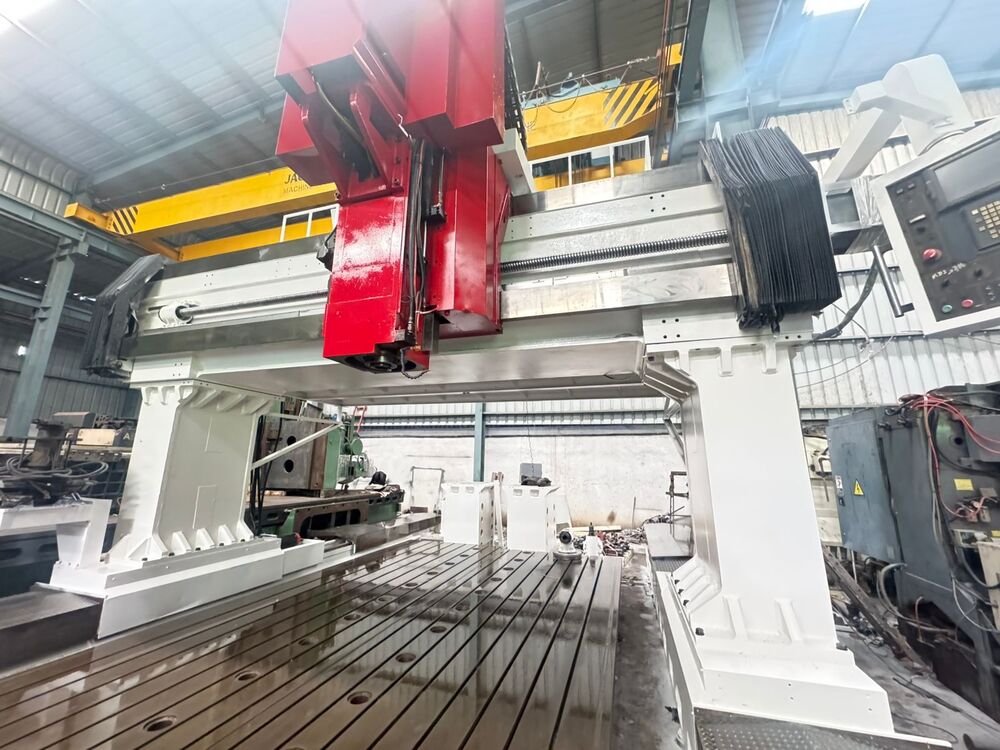

GANTRY VMC

Make : John ford

Model SDMC6000

Table 6000mm x 3500mm

Travel X6mi14Y4.2m z 1.2

Z colume height 2.2m

Between Column; 4.6 meter

Linear scale all axis

Angular head

Complete with motor panels

Exceptional Precision and Rigidity

Engineered from heavy-duty Meehanite cast iron, the GANTRY VMC ensures maximum stability and vibration dampening. It consistently delivers precise results with a positioning accuracy of 0.01 mm and repeatability of 0.008 mm, making it perfect for applications demanding exceptional dimensional control.

Large Work Envelope and High Load Capacity

Fitted with a 3000 mm x 2000 mm T-slotted, hardened, and ground table, this VMC comfortably supports complex machining operations on large components. With a load capacity of up to 20,000 kg, it handles even the most challenging metalworking projects with ease.

Advanced Automation and Control Options

Operators benefit from an intuitive color LCD interface with multilingual support. The machine comes with optional Siemens or Fanuc CNC controllers, a 24-tool automatic tool changer, high-flow coolant system, and automatic central lubrication for reliable, efficient production.

FAQ's of GANTRY VMC:

Q: How does the GANTRY VMC ensure consistent high-precision machining?

A: The machine achieves excellent accuracy through its rigid Meehanite cast iron structure, advanced CNC controller (Siemens or Fanuc), precision ball screws, positioning accuracy of 0.01 mm, and repeatability of 0.008 mm. Automatic lubrication and high-flow coolant further maintain thermal stability during prolonged operations.

Q: What types of applications is the GANTRY VMC best suited for?

A: It is ideal for precision metal cutting, heavy-duty milling, drilling, and surface finishing on large components. With a vast worktable and powerful 30 kW spindle, it is widely used in industries like aerospace, mold-making, and heavy machinery manufacturing.

Q: When and where should the GANTRY VMC be installed for optimal performance?

A: Installation should occur on a robust concrete foundation in a well-ventilated industrial environment. Proper electrical supply (380V/415V, 50Hz) and space for the 8000 x 4200 x 4000 mm machine dimensions are crucial for safe setup.

Q: What is the process of changing tools, and how does the automatic tool changer benefit users?

A: The VMC features a 24-tool automatic tool changer, allowing the CNC to switch between tools seamlessly during machining cycles. This reduces manual intervention, shortens production time, and enhances both productivity and consistency.

Q: How does the coolant and lubrication system contribute to machine longevity?

A: A high-flow flood coolant keeps cutting surfaces and tools cool, preventing overheating and prolonging tool life. The automatic central lubrication system ensures consistent lubrication of moving components, reducing wear and unplanned downtime.

Q: What are the main operator interface features and safety measures?

A: Operators access machine controls via a user-friendly color LCD panel with multi-language support for easier operation. Full enclosure with sliding doors and safety interlocks protects the operator from chips, coolant splash, and moving parts during operation.
