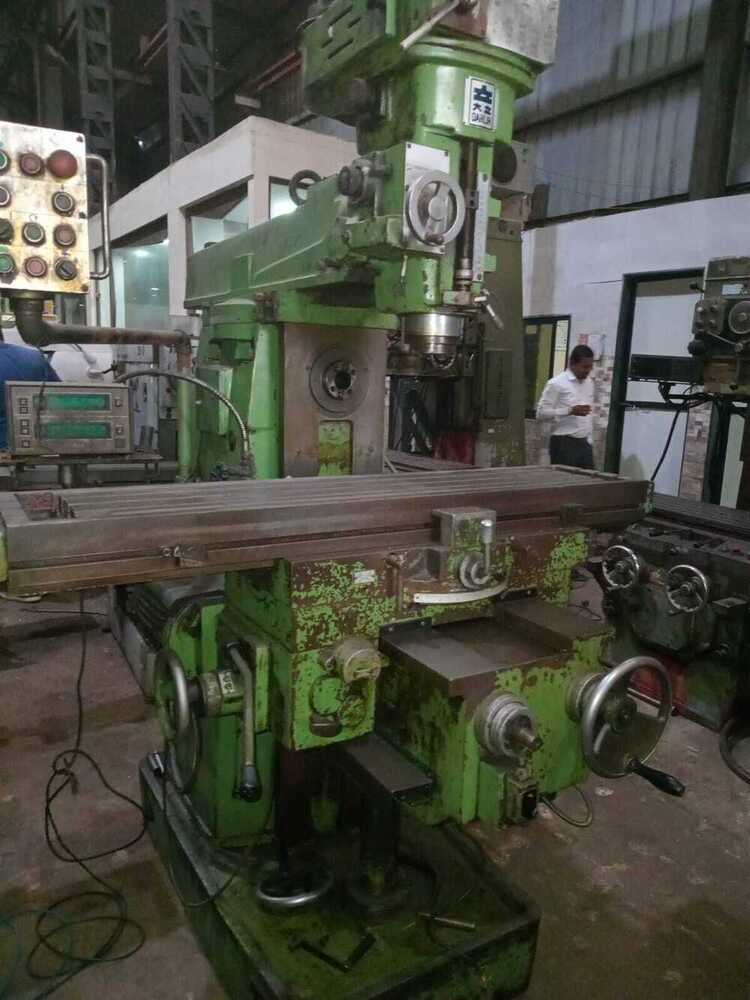

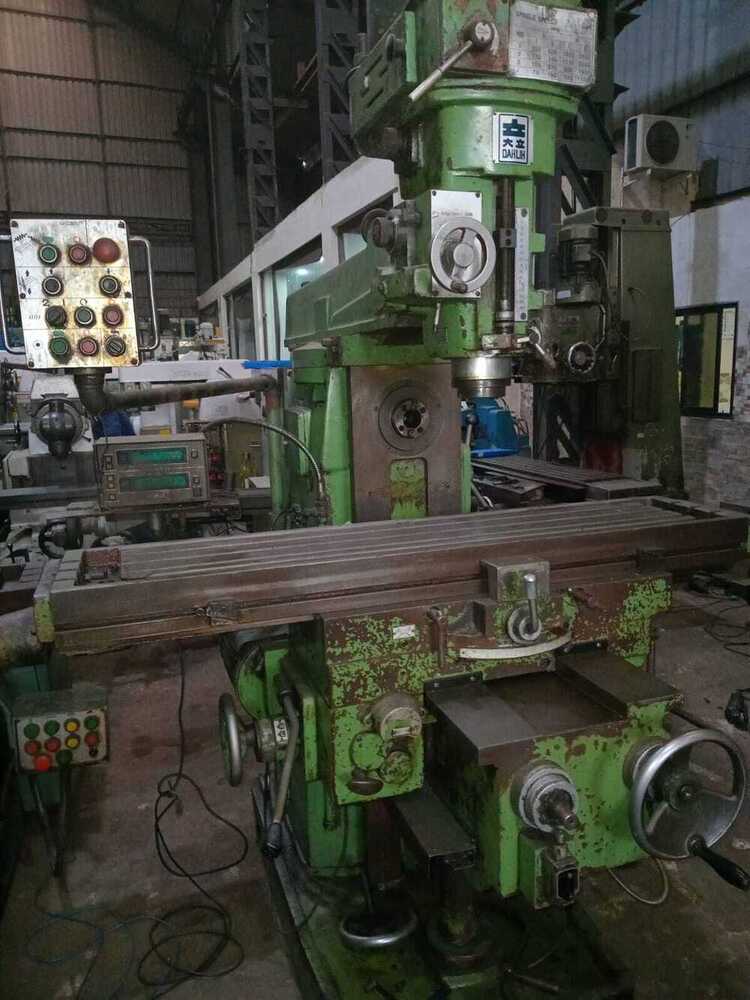

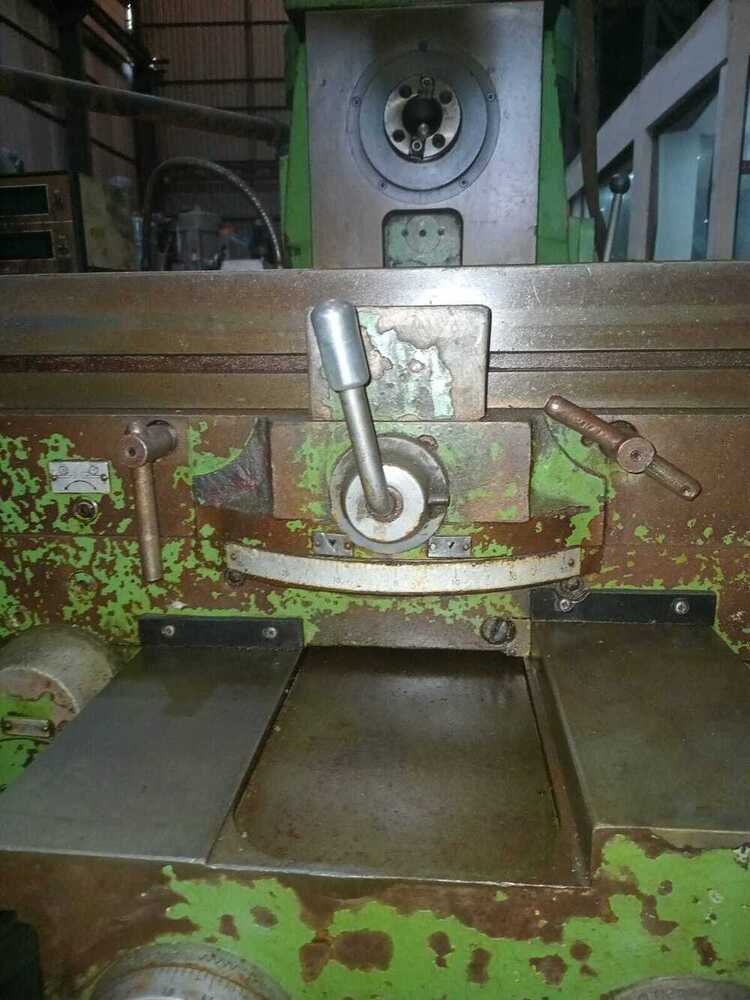

Double Spindle Bed Milling Machine

Get a Price/Quote

MOQ : 1 Piece

Double Spindle Bed Milling Machine Specification

Dimension (L*W*H)
3200 mm x 1800 mm x 2150 mm

Feature
Dual spindle for increased productivity, rigid bed structure

Weight
Approx. 3200 kg

Voltage
380 V / 415 V, 3 Phase, 50 Hz

Condition
New

Capacity
Up to 1200 kg workpiece

Output
High-accuracy finished components

Manufacturing Year
2024

Color
Industrial Grey

Machine Type
Double Spindle Bed Milling Machine

Used For
Precision milling, drilling, boring and cutting operations on metal workpieces

Power
15 kW (total)

Automatic Feed
Yes, on all axes

Table Size
1500 mm x 500 mm

Number of Spindles
2

Coolant System
Integrated

Control System
Semi-automatic with DRO

Precision
0.02 mm

Vertical Travel
500 mm

Longitudinal Table Travel
1200 mm

Max. Distance Between Spindle Centers
400 mm

Machine Base Material
Cast iron for vibration absorption

Spindle Taper
ISO 40

Cross Table Travel
600 mm

Lubrication System
Centralized automatic

Spindle Speed Range
50 - 3600 RPM

Max. Distance Spindle Nose to Table
550 mm

Double Spindle Bed Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1 Week

About Double Spindle Bed Milling Machine

Experience elite manufacturing excellence with our Double Spindle Bed Milling Machine, a blue-ribbon solution for precision metalwork. Utilise this sought-after, cost-effective machine featuring dual spindles for breathtaking productivity gains and high-accuracy results (0.02 mm). With a robust cast iron base, integrated lubrication, and comprehensive automation, this model meets global standards for demanding environments. Its semi-automatic DRO control ensures streamlined operations, making it the top choice for manufacturers, exporters, and traders who require efficiency and reliability. Avail this 2024 marvel and offer your clients the best in metalworking technology.

Precise Applications & Operational Guidance

The Double Spindle Bed Milling Machine is engineered for precision milling, drilling, boring, and cutting of metal workpieces. To operate, position the workpiece securely on the large table and utilise the dual spindles for enhanced output. The machine's semi-automatic system supports precision tasks, with automated feeds and integrated lubrication ensuring optimal performance. It is especially suited to high-volume, accurate machining in industries requiring superior finish and tight tolerances.

Delivery Timeline, Payment & Packaging Assurance

Delivered with utmost care, the Double Spindle Bed Milling Machine generally has an estimated delivery window of 4-6 weeks, depending on your location. Payment terms are flexible, supporting both advance and exchange through reputable banking methods. Each machine is packaged in robust, export-grade wooden crates with internal cushioning materials, ensuring transit safety and maintaining product integrity until installation.

FAQ's of Double Spindle Bed Milling Machine:

Q: How does the dual spindle design benefit machining operations?

A: The dual spindle design significantly increases productivity, allowing simultaneous or sequential machining on two axes, reducing cycle times and improving throughput for metalwork projects.

Q: What materials can be processed using this milling machine?

A: This machine is engineered specifically for precision milling, drilling, boring, and cutting on various metal workpieces, making it suitable for steel, aluminum, cast iron, and other industrial-grade metals.

Q: Where can the Double Spindle Bed Milling Machine be installed?

A: This machine can be installed in industrial machining shops, manufacturing plants, or facilities requiring high-volume, high-accuracy milling solutions. It requires stable electrical connections and appropriate space for its dimensions.

Q: What is the procedure for setting up the machine for operation?

A: Begin by ensuring a level and stable surface for installation. Connect the power supply (380V/415V, 3 Phase), then load your workpiece securely. Utilise the control panel to select spindle speeds and feed rates, and use the DRO system for precise adjustments.

Q: When can I expect delivery after placing an order?

A: Delivery is typically completed within 4-6 weeks post-order confirmation, though the timeline may vary depending on your location and shipping arrangements.

Q: How cost-effective is the machine in long-term usage?

A: Thanks to the automated features like centralised lubrication, automatic feed on all axes, and robust construction, operational costs stay low while ensuring consistent, high-quality production over years of service.
