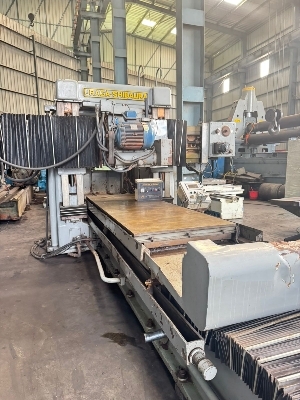

Double column surface grinder Hydraulic- SHIBURA (Japan)

Get a Price/Quote

MOQ : 1 Piece

Double column surface grinder Hydraulic- SHIBURA (Japan) Specification

Color
Industrial Blue & Grey

Condition
Used / Second-Hand

Machine Type
Double Column Surface Grinder Hydraulic

Output
Hydraulic powered, hand/feed operation

Dimension (L*W*H)
Approx. 4850 x 2540 x 3230 mm

Power
Approx. 15 kW

Used For
Precision surface grinding of large components

Weight
Approximately 18,000 kg

Capacity
Grinding area approx. 2000 x 800 mm

Voltage
380-415 V, 3 Phase

Feature
Automatic hydraulic operation, robust double column structure, precision ground bed, easy maintenance

Technical Documentation
Operator's manual and electrical schematics provided

Longitudinal Table Travel
2200 mm

Surface Finish Accuracy
Up to 2 microns Ra

Hydraulic System
High-pressure pump, integrated with filtration

Safety Features
Overload protection, full guarding, emergency stop

Table Size
2000 mm x 800 mm

Lubrication System
Centralized automatic lubrication

Accessories
Standard magnetic chuck, wheel dresser, splash guards, maintenance toolkit

Wheel Size
500 mm x 50 mm

Max Grinding Height (Under New Wheel)
600 mm

Spindle Motor Power
15 HP

Cross Travel
900 mm

Control Type
Panel-based electro-hydraulic controls

Max Table Load
4000 kg

Coolant System
Industrial capacity coolant tank with circulation pump

Double column surface grinder Hydraulic- SHIBURA (Japan) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Double column surface grinder Hydraulic- SHIBURA (Japan)

Double coloum Surface Grinder Fully Hydraulic Make ; SHIBURA ( Japan) Table size ; 3000mm x 1000mm Travels ; 3000mm x 1200mm Magnetic chuck : 3000mm x 1000mm Power Pack Coolant tank complete

Robust Double Column Construction

This SHIBURA double column surface grinder features a rugged framework and precision ground bed, ensuring outstanding rigidity and stability during operation. Its double column design enables efficient handling of large and heavy workpieces, making it ideal for industries requiring high-accuracy grinding over expansive surfaces.

Hydraulic and Automated Convenience

Equipped with a powerful 15 HP spindle motor and high-pressure hydraulic system, this machine delivers consistent performance. The automated hydraulic operation, centralized lubrication, and user-friendly panel-based electro-hydraulic controls streamline both productivity and maintenance, reducing operator fatigue.

Precision and Reliability

Engineered to achieve surface finish accuracy as fine as 2 microns Ra, the SHIBURA surface grinder caters to the most demanding precision applications. Accessories such as the magnetic chuck and wheel dresser, combined with industrial coolant circulation, support superior grinding results on every use.

FAQ's of Double column surface grinder Hydraulic- SHIBURA (Japan):

Q: How does the hydraulic system enhance the operation of the SHIBURA double column surface grinder?

A: The integrated high-pressure hydraulic system provides steady table movement and feed controls, ensuring smooth longitudinal and cross-travel during grinding. Consistent hydraulic performance enhances accuracy, durability, and operational safety throughout the grinding process.

Q: What types of components can be ground using this surface grinder, and what is the maximum workpiece size it supports?

A: Designed for large workpieces, this grinder handles components up to 2000 mm x 800 mm in table area, a maximum load of 4000 kg, and up to 600 mm grinding height. It's ideal for precision flat grinding in heavy-duty sectors such as mold-making, metal fabrication, and machine rebuilding.

Q: When should the grinder's maintenance be performed, and what systems are in place to simplify upkeep?

A: Routine maintenance should follow the schedules provided in the machine's operator manual. With features like centralized automatic lubrication and easy-access guarding, essential servicing-such as lubricating moving parts and inspecting coolant levels-is straightforward and minimizes downtime.

Q: Where can this SHIBURA surface grinder be installed for optimal performance?

A: It should be installed in an industrial workshop with adequate space for its approximate dimensions of 4850 x 2540 x 3230 mm, and access to a stable 380-415 V, 3 Phase power supply. Placing it on a level foundation is essential to maintain accuracy and stability during heavy grinding tasks.

Q: What is the general process to operate this double column surface grinder safely and effectively?

A: Operation involves positioning the workpiece on the magnetic chuck, setting grinding parameters using the panel-based controls, and starting the hydraulic and coolant systems. Safety features like emergency stop and overload protection should be verified before commencing each session. Follow all procedural steps in the operator's manual for optimum results.

Q: How is surface finish accuracy achieved, and what benefits does this offer?

A: Surface finish accuracy up to 2 microns Ra is achieved using precision-machined components, a sturdy structure, and consistent hydraulic movement. This allows for high-quality finishes, reducing the need for further machining or hand polishing, thus saving time and cost in production workflows.
