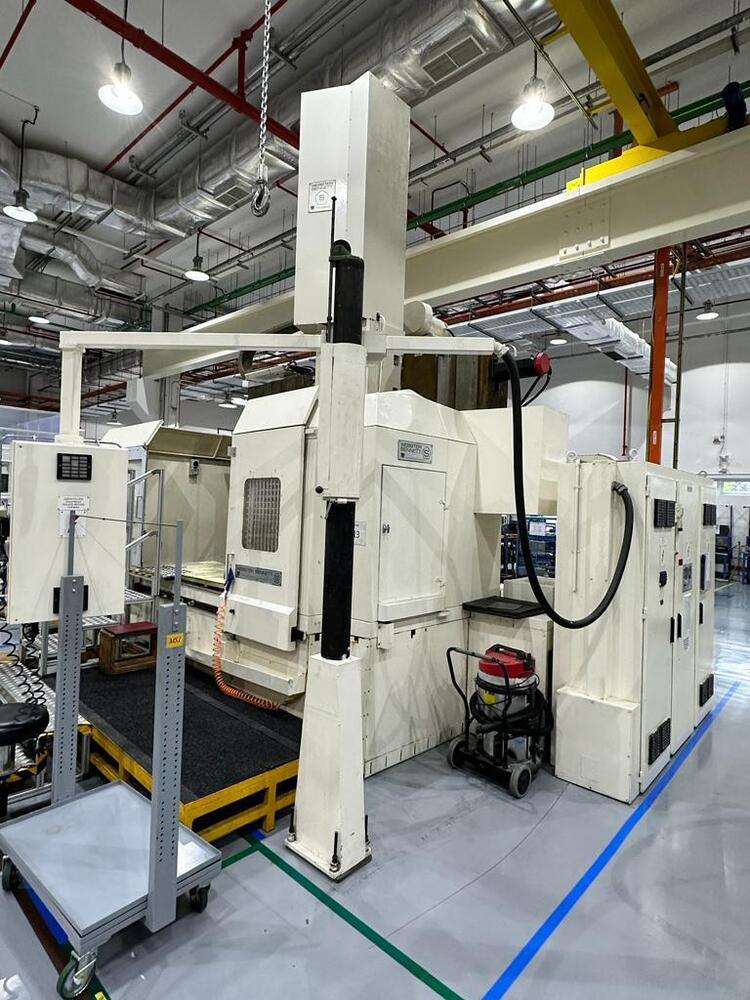

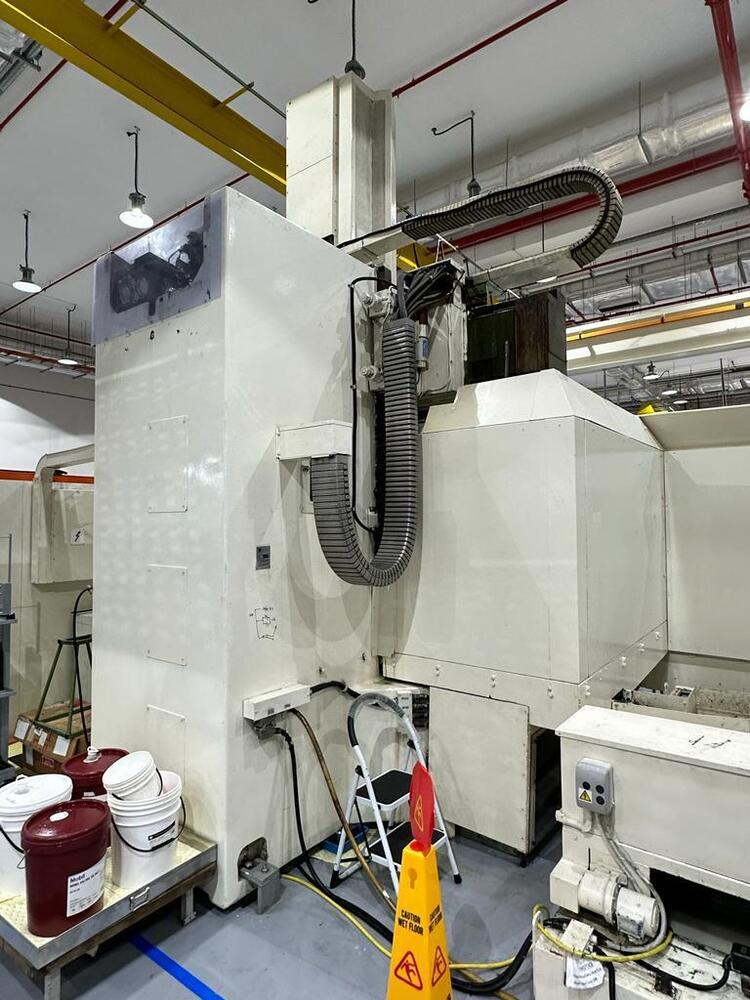

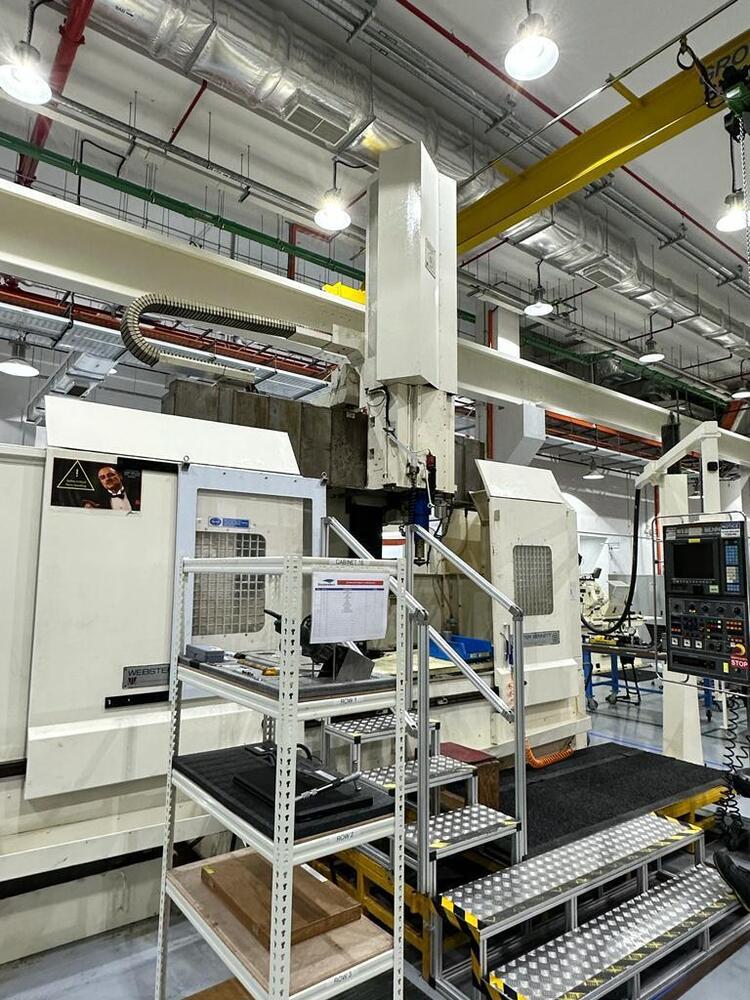

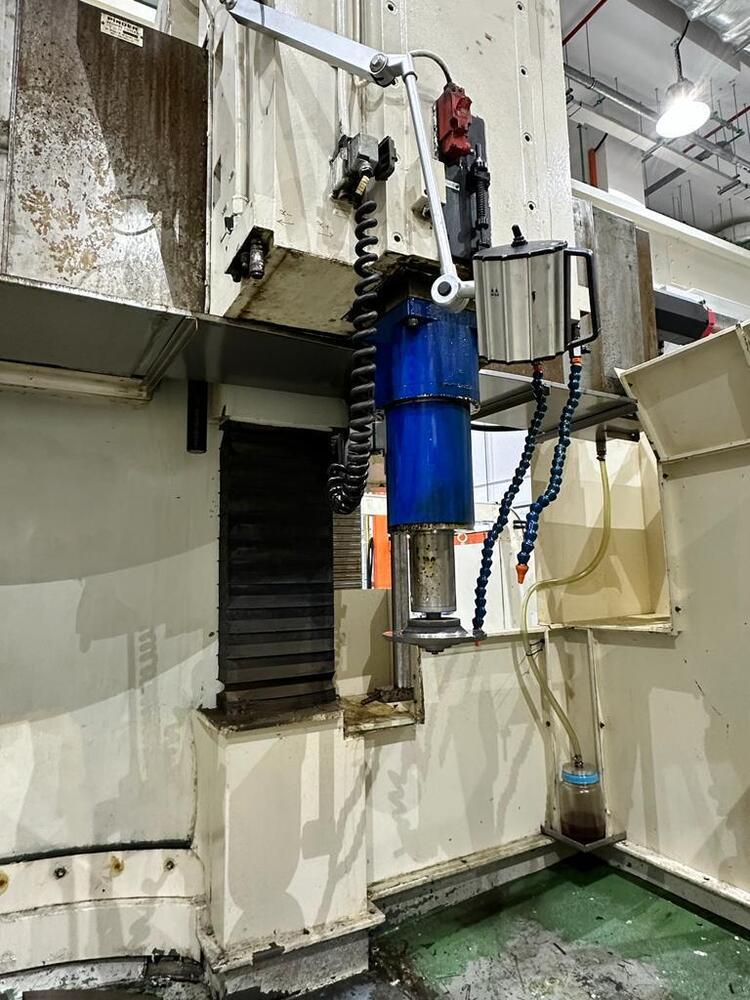

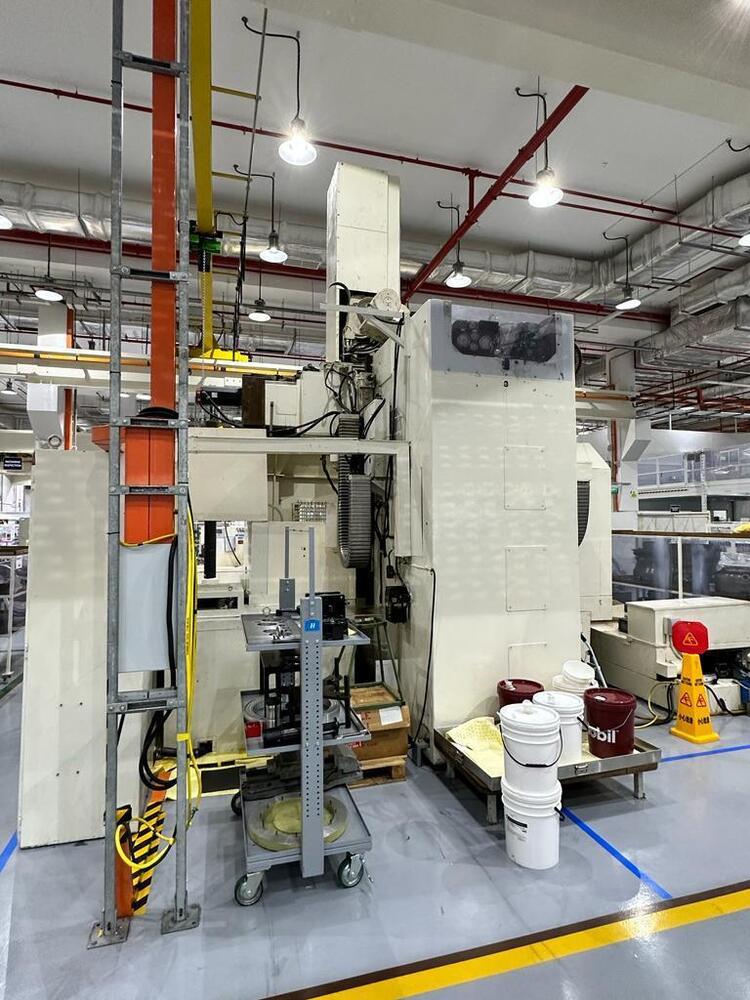

CNC VTL Machine

Get a Price/Quote

MOQ : 1 Piece

CNC VTL Machine Specification

Manufacturing Year
2023

Feature
High rigidity structure, advanced CNC controls, automatic tool changer

Output
Smooth, high precision finished metal parts

Condition
New

Color
Industrial Grey/Blue

Voltage
400 V, 3 Phase

Power
22 kW

Used For
Precision turning of large diameter cylindrical components

Capacity
Turning diameter up to 1600 mm

Machine Type
CNC Vertical Turning Lathe (VTL) Machine

Dimension (L*W*H)
4000 mm x 2750 mm x 3400 mm

Weight
Approx. 8,500 kg

Coolant System
Integrated, high-pressure

Guideway Type
Hardened & ground box guideways

Repeatability
0.008 mm

Max Turning Height
1200 mm

Lubrication
Automatic centralized lubrication

Max Workpiece Weight
4000 kg

Auxiliary Functions
Chip conveyor, remote diagnostics available

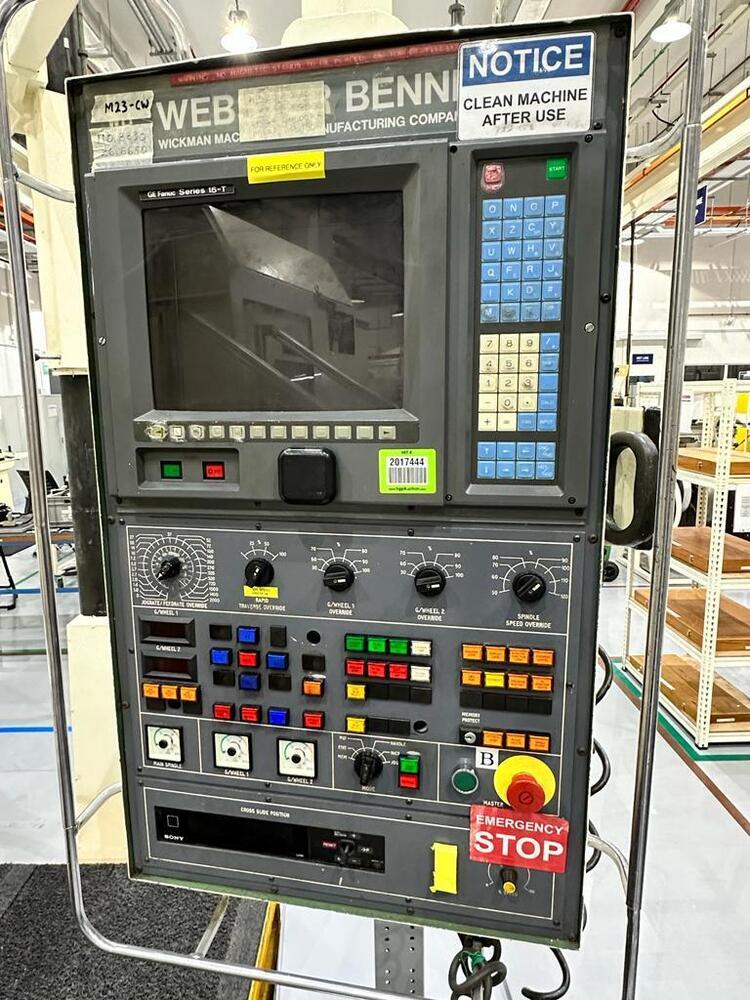

CNC System
Siemens / Fanuc

Enclosure Type
Full enclosure with sliding doors for safety

Chuck Type
Hydraulic 4-jaw

Table Diameter
1400 mm

Positioning Accuracy
0.01 mm

Spindle Speed Range
5 - 250 rpm

No. of Tool Stations
12 station (automatic) turret

CNC VTL Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About CNC VTL Machine

Discover the CNC Vertical Turning Lathe (VTL) Machine-an incomparable solution designed for high-precision, large-scale turning tasks. Engineered with an astonishing max turning height of 1200 mm, a 1400 mm table diameter, and robust 22 kW power, this best-seller delivers spectacular accuracy, with positioning up to 0.01 mm. Redeem the best price from India's leading distributor, exporter, manufacturer, supplier, and trader. Equipped with advanced Siemens/Fanuc CNC, a 12-station automatic turret, hydraulic chuck, and a full enclosure for optimal safety, this new 2023 model guarantees it meets all your rigorous machining demands.

Usage & Applications of CNC VTL Machine

The CNC VTL Machine is engineered for precision turning of large diameter cylindrical components such as heavy flanges, wheels, and bearing housings. Spectacularly suited for industries like railways, aerospace, marine, and heavy machinery manufacturing, this VTL enables smooth, efficient, and accurate metal part production. Operators simply program the system (Siemens/Fanuc), load the workpiece, initiate the cycle, and the machine delivers high precision with minimal intervention. Automatic tool changing and integrated safety features make application seamless and productive.

Certifications, Packaging & Delivery Information

Each CNC VTL Machine is supplied with quality assurance certifications that guarantee an incomparable manufacturing standard. Packing & dispatch are handled with care-using robust, industrial-grade materials to provide maximum safety during transit. Transport services are well-coordinated to cover all Indian regions and global export markets. Estimate delivery times vary by location, typically ranging from four to six weeks after order confirmation. Our dedicated logistics team ensures prompt, efficient handling from packaging to doorstep delivery.

FAQ's of CNC VTL Machine:

Q: How does the CNC VTL Machine ensure high-precision turning?

A: The machine features advanced CNC controls (Siemens/Fanuc), a rigid structure, 0.01 mm positioning accuracy, and repeatability of 0.008 mm, resulting in astonishingly precise metal part production.

Q: What materials or components can be processed on this CNC VTL Machine?

A: This VTL is ideal for large cylindrical components like flanges, wheels, bearing housings, and other heavy-duty industrial parts requiring high-precision finishing.

Q: When can I expect delivery after placing an order for this CNC VTL Machine?

A: Typically, delivery occurs within four to six weeks from order confirmation, based on transport service availability and destination.

Q: Where is the machine manufactured and can it be exported internationally?

A: Manufactured in India by a renowned supplier, this CNC VTL Machine is available for both domestic delivery and international export through our broad logistics network.

Q: What is the process for installing and operating this machine?

A: Professional installation support is provided. Users simply mount the workpiece, configure the CNC program, and the automated system takes over, including tool changes and safety measures.

Q: What benefits do the automatic tool changer and integrated coolant system provide?

A: The automatic tool changer enhances productivity with efficient switching between operations, while the high-pressure integrated coolant system ensures superior cutting quality and extended tool life.
