5 AXIS CNC T type Boring Machine

Get a Price/Quote

MOQ : 1 Piece

5 AXIS CNC T type Boring Machine Specification

Dimension (L*W*H)
5800 mm x 3500 mm x 3100 mm

Output
CNC machined parts, molds, prototypes

Machine Type
5 AXIS CNC T Type Boring Machine

Voltage
380-415 V, 50/60 Hz

Condition
New

Weight
Approx. 18,000 kg

Feature
Simultaneous 5-axis machining, Heavy-duty frame, T-type bed structure, High rigidity

Used For
High-precision boring, milling, drilling of large complex parts

Capacity
Workpiece up to 4000 mm x 2500 mm x 1500 mm

Color
Standard Industrial Grey/Blue

Manufacturing Year
2024

Power
Main spindle motor 45 kW

Spindle Speed
Up to 6,000 rpm (high precision)

Interface
USB, Ethernet, RS232

Control System
FANUC / Siemens CNC Controller

Minimum Resolution
0.001 mm

Air Supply
Required, 6-8 bar

Lubrication
Automatic centralized lubrication system

Travel (X/Y/Z Axis)
4000 mm / 2500 mm / 1500 mm

Safety Features
Emergency stop, interlock doors, overload protection

Table Load Capacity
15,000 kg

Repeatability
0.003 mm

Spindle Taper
ISO 50

Tool Magazine Capacity
40 tools automatic changer

Positioning Accuracy
0.005 mm

Noise Level
Less than 78 dB (A)

Coolant System
High-pressure through-spindle

5 AXIS CNC T type Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1 Week

About 5 AXIS CNC T type Boring Machine

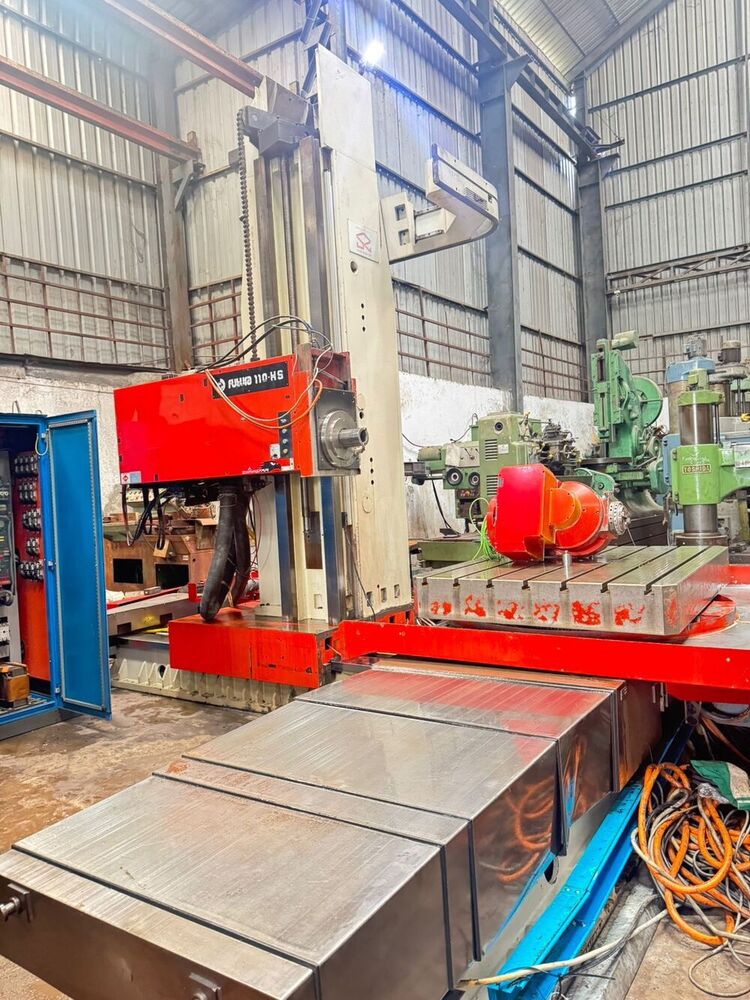

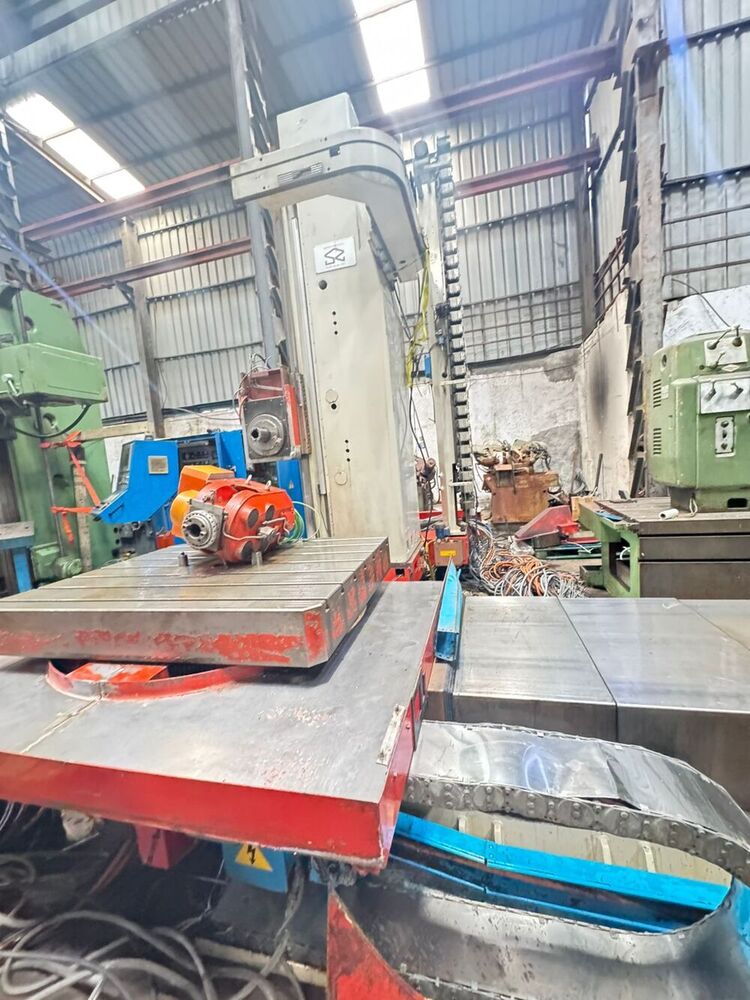

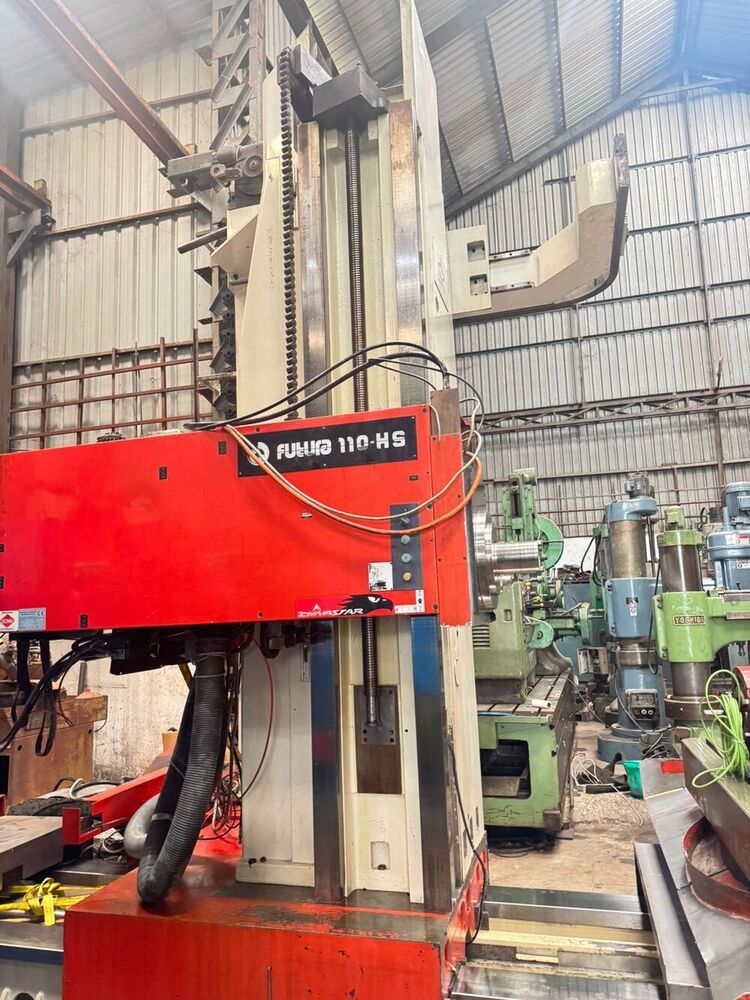

5 AXIS CNC T type Boring Machine

Make: SAN ROCCO

Model : FUTURA CNC

Spindle dia: 110 mm ISO-50

Spindle speed: 2500 Rpm

Spindle steps: 2 (low / high gear)

X Travel: 3100mm

Y (vertical travel): 2000mm

Z Travel: 1500mm

W (quill travel): 550 mm

Table size: 1650mm x 1250 mm

Table load capacity: 10ton

Machine with extra MILLING HEAD

Cnc : Ecs control

Atc : 60 nos

High-Precision Multi-Axis Machining

This machine's simultaneous 5-axis technology enables complex geometric part production in a single setup, drastically reducing cycle times. With a positioning accuracy of 0.005 mm and repeatability of 0.003 mm, you can achieve exceptional consistent results even with intricate or heavy workpieces. The spindle operates at up to 6,000 rpm, supporting high-speed, high-accuracy cutting.

Rugged Construction and Versatile Capacity

Built for strength, the T-type bed structure and heavy-duty frame enable stable operation, supporting components up to 15,000 kg and dimensions of 4000 x 2500 x 1500 mm. Automatic centralized lubrication and high-pressure through-spindle coolant further extend machine and tool lifespan.

User-Friendly Operation and Advanced Control

The machine integrates a FANUC or Siemens CNC controller for intuitive programming and seamless operation. Efficient tool management is supported by a 40-tool automatic magazine. Connection interfaces (USB, Ethernet, RS232) provide flexible data transfer, while safety features maximize operator protection.

FAQ's of 5 AXIS CNC T type Boring Machine:

Q: How does the 5 AXIS CNC T Type Boring Machine enhance manufacturing efficiency?

A: This machine streamlines workflows by enabling simultaneous 5-axis machining. It can perform boring, drilling, and milling in a single setup, minimizing repositioning and manual intervention, thereby maximizing productivity and accuracy for large or complex parts.

Q: What type of workpieces is this machine suitable for?

A: It is ideal for high-precision machining of large and intricate components, such as molds, prototypes, and heavy mechanical parts. The machine can accommodate workpieces up to 4000 mm x 2500 mm x 1500 mm, weighing up to 15,000 kg, commonly needed in industries like aerospace, automotive, and heavy engineering.

Q: When should I use the high-speed spindle option?

A: The spindle speed, reaching up to 6,000 rpm, is best utilized when working with lighter tools or finer materials requiring superior surface finishes and precision. For roughing large volumes or heavy materials, lower speeds paired with the robust ISO 50 taper and high torque are recommended.

Q: What is the process for changing tools on this boring machine?

A: Tool changes are automatic and managed by a 40-tool magazine, which is controlled through the CNC interface. The machine selects and swaps tools as per the programmed machining operations, enabling uninterrupted multi-stage processes and reducing manual intervention.

Q: Where can connectivity and data transfer be managed?

A: Operators can transfer programs and data to the machine via USB ports, Ethernet, or RS232 interfaces, ensuring compatibility with modern CAD/CAM systems and facilitating streamlined workflow integration.

Q: How does the machine ensure operator and component safety?

A: The CNC machine incorporates comprehensive safety mechanisms such as emergency stop buttons, interlock-protected doors, and overload protection-safeguarding both users and sensitive components during operation.
